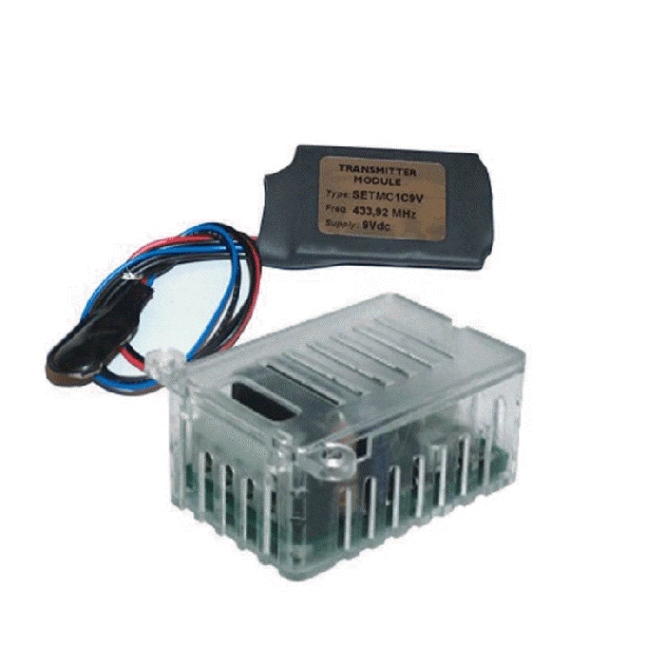

The Universal Radio Transmitter OPR-KIT and NANO Receiver is designed to convert any device operating a switch into a wireless control system. This kit is particularly useful in situations where it is difficult to install cables, such as remotely sited disabled buttons or other remote switches. The receiver can memorize up to 85 CDVI radio transmitters, offering enhanced flexibility and control for a wide range of applications.
The OPR-KIT allows you to create your own wireless device, making it an ideal solution for converting any switch-operated device into a radio control system. This kit is particularly useful in areas where installing cables is challenging, such as for remotely sited disabled buttons. The NANO receiver enhances the flexibility of the kit, capable of memorizing up to 85 CDVI radio transmitters.
Using Rolling Code Keeloq® technology, the OPR-KIT ensures secure and reliable communication between the transmitter and receiver. Operating at a frequency of 433.92MHz with ASK modulation, the kit provides a robust and efficient wireless control solution.
Specification | Details |
---|---|
Frequency | 433.92MHz |
Modulation | ASK |
Coding | Rolling Code Keeloq® |
Receiver Memory | 85 transmitters |
Transmitter Voltage | 9Vdc battery |
Receiver Voltage | 12V to 24Vac/dc |
Transmitter Dimensions | 54 x 29 x 6mm |
Receiver Dimensions | 50 x 32 x 20mm |
The Universal Radio Transmitter OPR-KIT and NANO Receiver provide a flexible and efficient solution for wireless control applications. Whether you need to convert a switch-operated device into a wireless system or require a solution for difficult cable installations, this kit offers the reliability and functionality you need.
