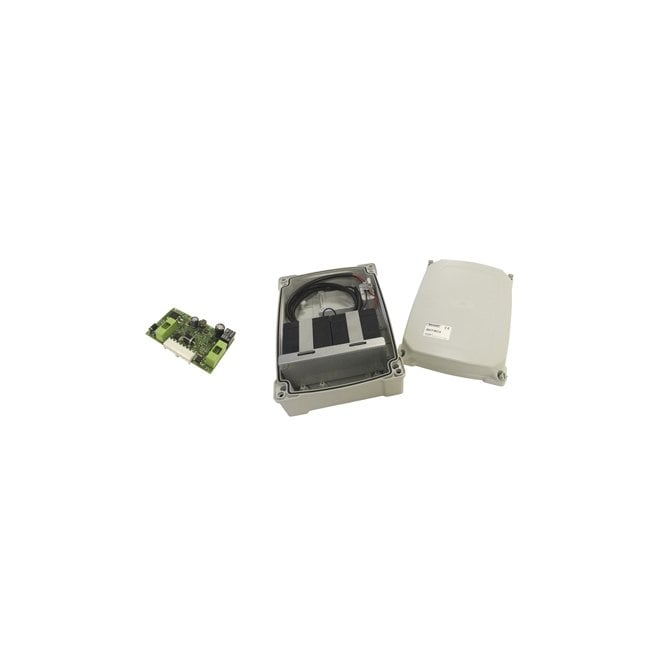

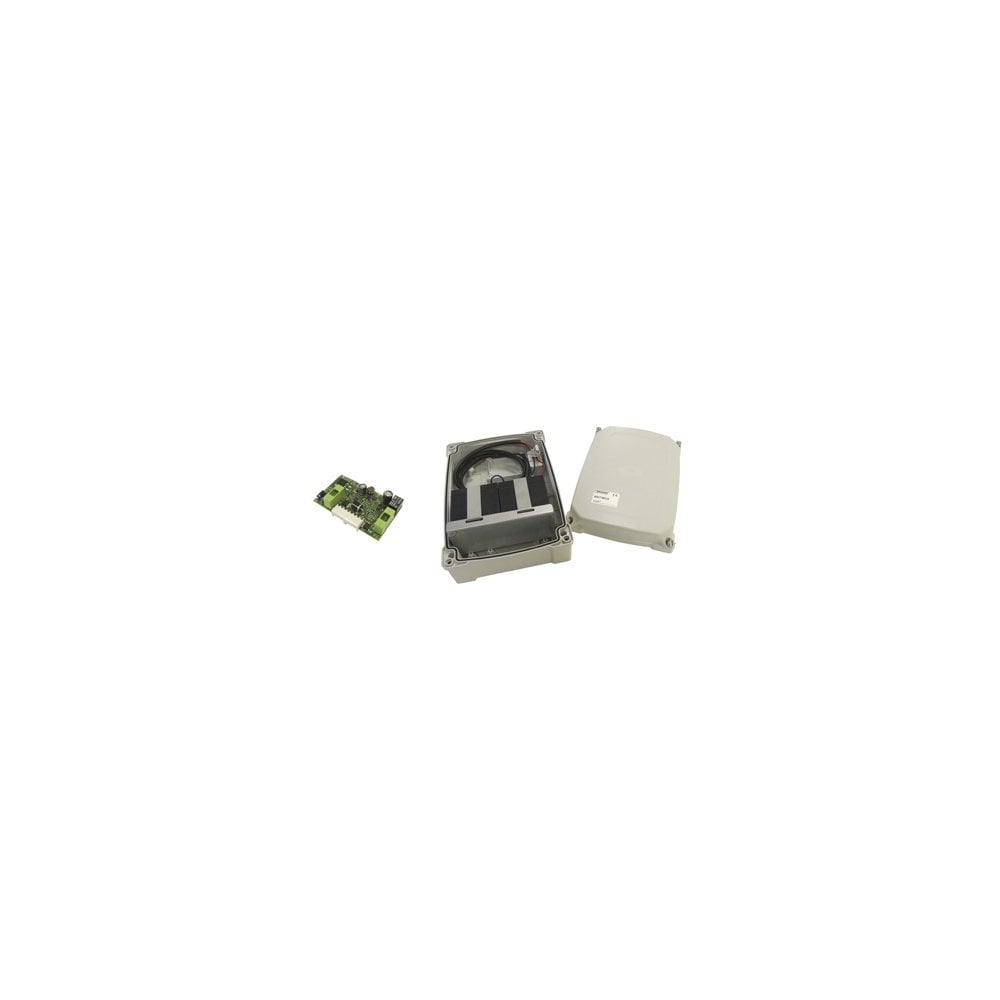

The B71/BCHP/EXT Kit is an emergency battery charger designed for the Brushless digital controller EDGE1/BOX - B70/1DCHP 36V DC. This comprehensive kit includes a plug-in card, two 12V DC 4.5 Ah recovery batteries connected in series, and a robust box case. The B71/BCHP/EXT ensures your system remains operational during power outages, providing reliability and peace of mind. The kit supports various power line supplies and offers efficient charging options to meet your emergency power needs.
The B71/BCHP/EXT Kit provides a reliable and efficient emergency battery charging solution for the Brushless digital controller EDGE1/BOX - B70/1DCHP 36V DC. The kit includes a plug-in card, two 12V DC 4.5 Ah lead-acid recovery batteries connected in series, and a durable box case to protect and organize the components. The charger supports a power line supply range of 16V AC to 24V AC and operates effectively in temperatures from -20°C to +55°C. With a maximum input power of 15W, the charger ensures your batteries are charged efficiently and safely.
This emergency charger kit features a nominal charge voltage of 27.6 V DC and a minimum self-protection voltage of 19.5 V DC, ensuring optimal battery maintenance and longevity. The 400 mA charge current facilitates fast charging, making the B71/BCHP/EXT an ideal solution for maintaining power in emergency situations.
| Power Line Supply | 16V AC … 24V AC |
|---|---|
| Operating Temperature | -20°C +55°C |
| Maximum Input Power | 15W |
| Lead-Acid Batteries | 2 x 12V DC 4500mAh, connected in series |
| Nominal Charge Voltage | 27.6 V DC |
| Minimum Self-Protection Voltage | 19.5 V DC |
| Charge Current | 400 mA |
| Product Weight (Packed) | 5.2 Kg |
The B71/BCHP/EXT Kit is straightforward to install and use, ensuring your Brushless digital controller EDGE1/BOX - B70/1DCHP remains powered during emergencies. Simply follow the included instructions to connect the charger to your existing system. The robust box case provides protection and organization for the components, ensuring reliable performance in emergency situations.
For more details on the B71/BCHP/EXT Kit or to place an order, please contact us. Our team is ready to assist you with any questions or support you may need.
