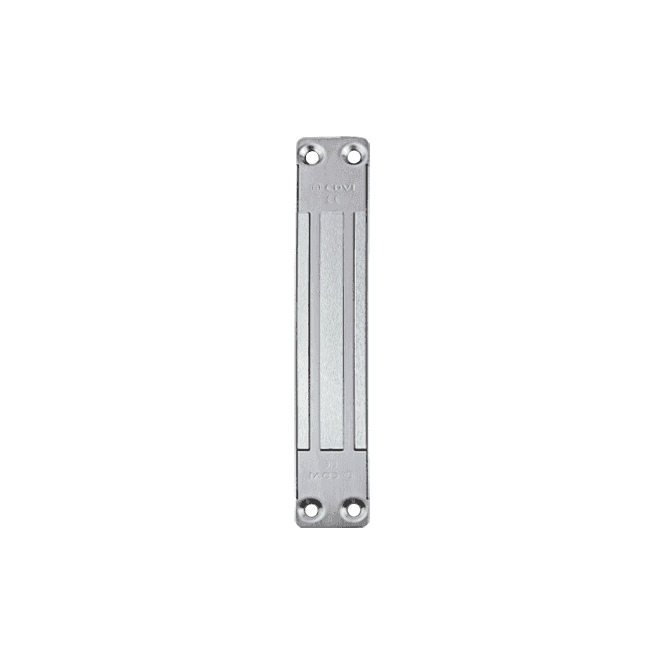

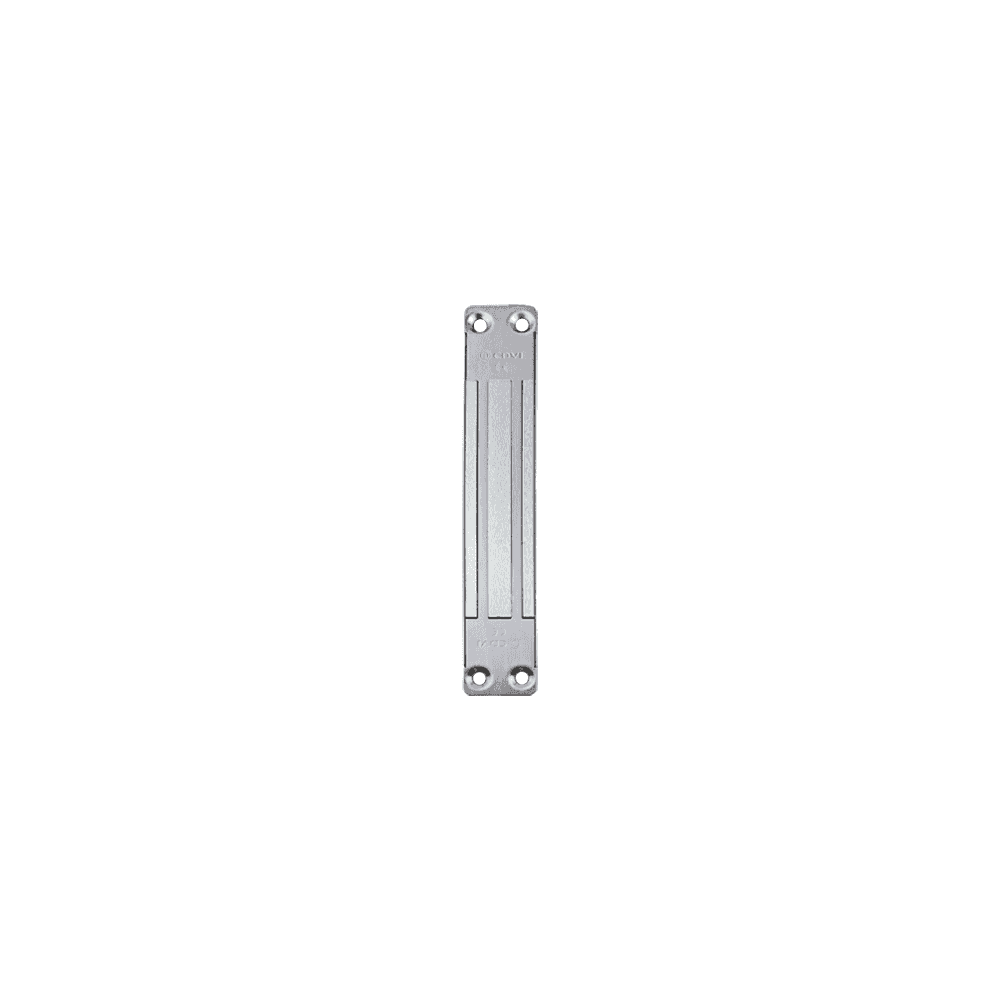

The CDVI i180ER is a high-performance external mortice magnetic lock with a holding force of up to 180kg. Designed for use in the harshest environments, this electromagnetic lock offers flexible locking solutions and is cased in high-grade stainless steel with a unique cover plate. The i180ER comes with a full fixing kit, ensuring easy and secure installation.
The i180ER mortice magnetic lock from CDVI is engineered to deliver robust security in the most challenging environments. With a holding force of 180kg, this lock ensures reliable door security for various applications. Its monitored functionality allows for real-time status updates through COM, NO, and NC outputs, enhancing the overall security management system.
Encased in high-grade stainless steel, the i180ER lock is designed for durability and resistance to corrosion. The unique cover plate adds an extra layer of protection and aesthetic appeal. Rated at IP54, the lock provides effective protection against dust and water, making it suitable for external installations.
| Specification | Details |
|---|---|
| Holding Force | 180 kg |
| Monitoring | Lock status - COM, NO, NC |
| Voltage | 12/24Vdc |
| Current | @12Vdc = 550mA; @24Vdc = 275mA |
| Dimensions | 201 x 32 x 22mm |
| IP Rating | IP54 |
| Temperature Operating Range | -40 to +60°C |
The CDVI i180ER magnetic lock is ideal for securing external doors in commercial, industrial, and residential settings. Its high holding force, monitored functionality, and robust construction make it a versatile and reliable choice for high-performance security solutions.
