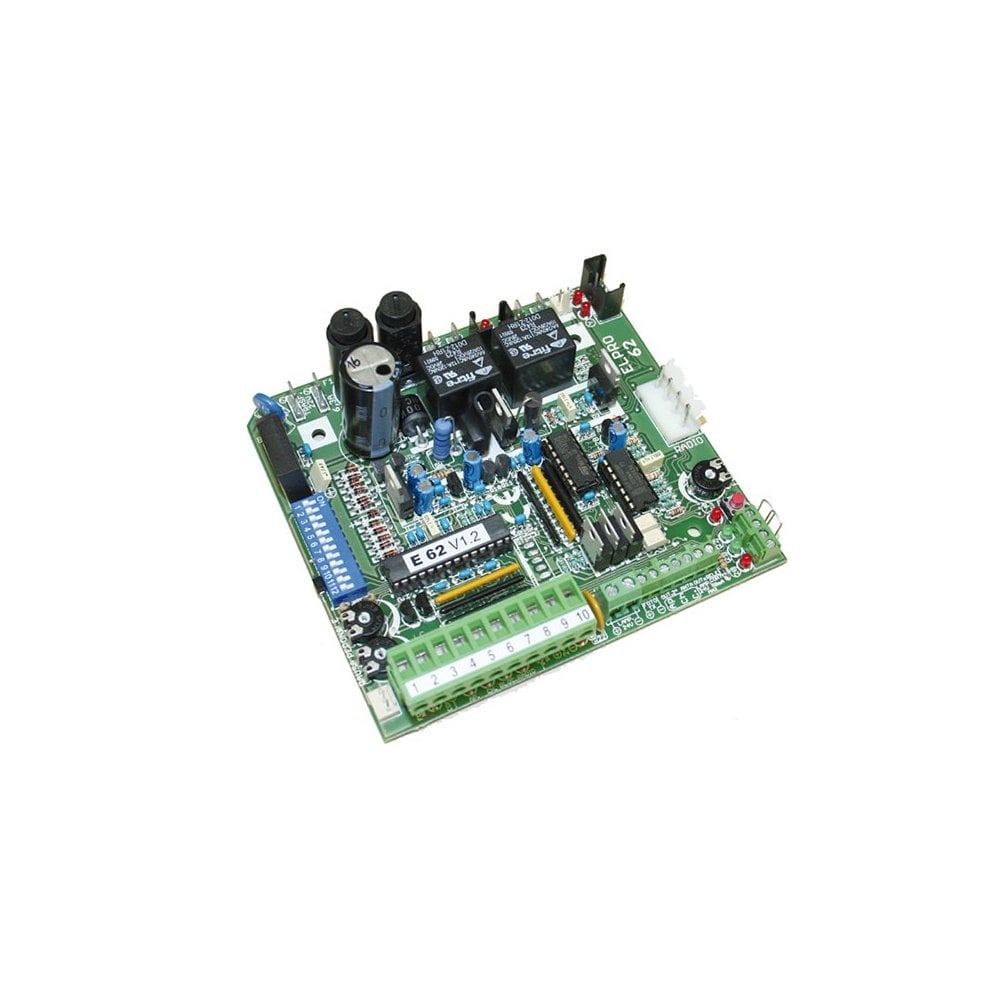

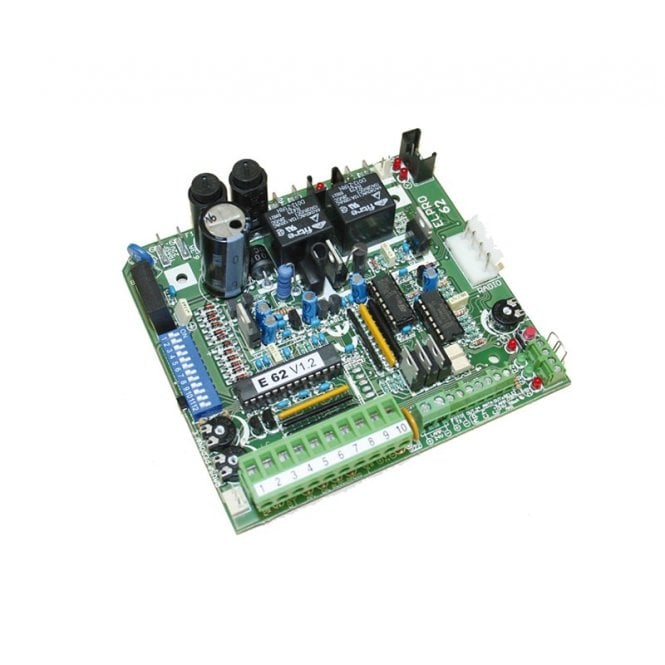

The Fadini ELPRO 62 Control Panel is a 24V electronic programmer designed for the JUNIOR 624 gate operators. This control panel offers comprehensive functionality, including gate travel programming with self-detection, slow-down features, and automatic reversal upon impact. It is also preset to control a second gate (SLAVE) for synchronized operations. The panel operates on a single phase power supply, ensuring reliable performance and ease of installation.
The Fadini ELPRO 62 Control Panel enhances the functionality and safety of the JUNIOR 624 gate operators. This 24V electronic programmer supports precise gate travel programming with self-detection capabilities, ensuring smooth and accurate gate movements. The slow-down feature allows for gentle deceleration, reducing wear and tear on the gate mechanism.
Safety is a priority with the ELPRO 62, as it includes an automatic reversal function that activates upon detecting an impact, preventing potential damage or injury. The control panel is also preset to manage a second gate in a master-slave configuration, providing synchronized operation for dual gate systems.
The control panel supports a single phase power supply of 230 V ±10% 50 Hz and can handle motors with a maximum power of 200 W. It includes various outputs for courtesy lights, photocells, keyswitches, and radio receivers, offering versatile connectivity options. The courtesy light output is rated at 24 V DC with a maximum of 50 mA, while the photocells/keyswitch/radio receiver output supports up to 24 V DC and 500 mA. Additional outputs include a 24 V - 1W pilot light output and a 24 V DC/AC flasher output.
