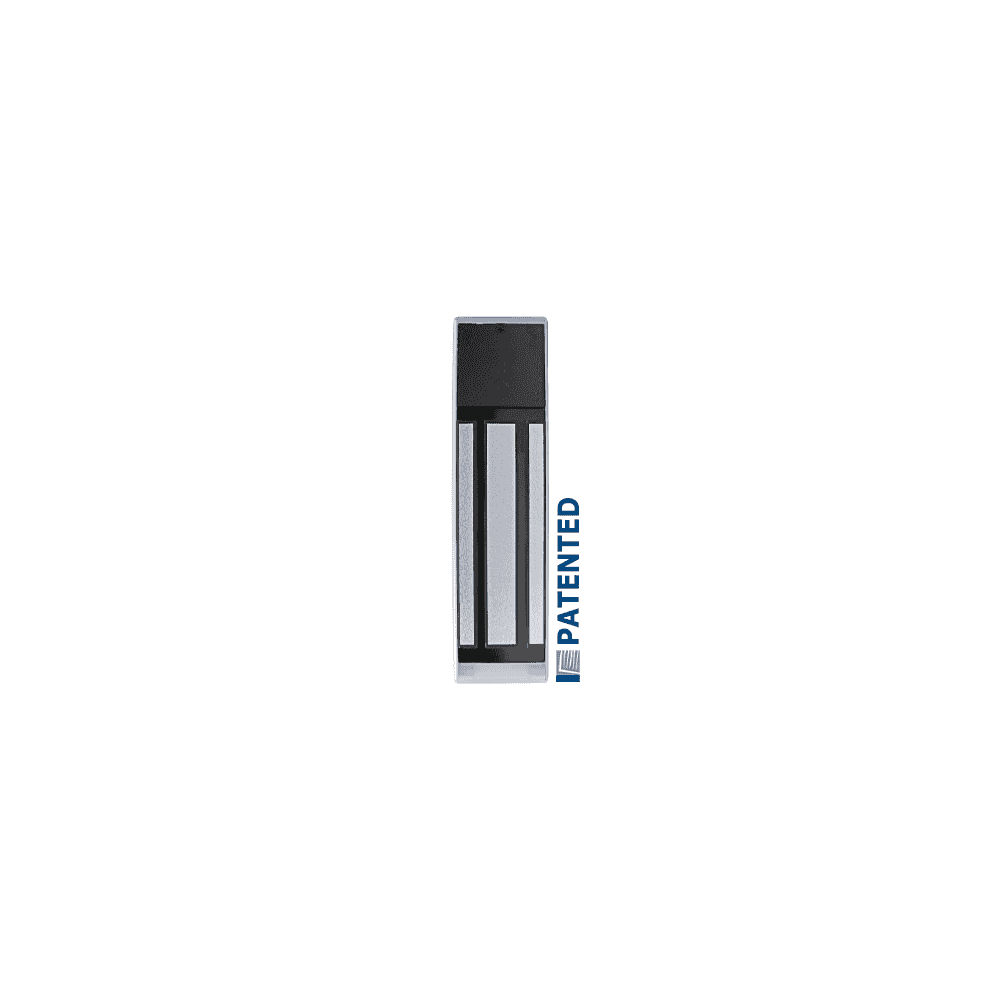

The CDVI V3SR is a high-performance monitored surface magnetic lock with a holding force of up to 300kg. Designed to offer exceptional security and reliability, this maglock is part of CDVI's extensive range of electromagnetic locks. It features a door positioning monitor (DPM300) for enhanced system accuracy and is supplied in professional packaging with security “catch” ropes for safe installation.
The V3SR surface mounted magnetic lock from CDVI delivers a robust holding force of up to 300kg, making it suitable for various security applications. Its monitored functionality provides real-time lock status updates through COM, NO, and NC outputs, ensuring reliable security management.
This maglock is designed for surface mounting and operates on either 12Vdc or 24Vdc, providing flexibility for different power configurations. The lock includes security “catch” ropes, which prevent the magnetic lock from falling during installation, ensuring safety and ease of installation.
The V3SR is IP42 rated, offering protection against dust and water ingress, making it suitable for both indoor and outdoor installations. The addition of a door positioning monitor (DPM300) enhances the reliability and accuracy of the locking system, making it an ideal choice for high-security environments.
| Specification | Details |
|---|---|
| Holding Force | 300 kg |
| Monitoring | Lock status - COM, NO, NC |
| Voltage | 12/24Vdc |
| Current | @12Vdc = 550mA; @24Vdc = 275mA |
| Dimensions | 248 x 45 x 26mm |
| IP Rating | IP42 |
| Door Positioning Monitor | DPM300 (optional) |
The CDVI V3SR magnetic lock is designed for high-security applications where reliable and robust locking solutions are required. Its high holding force, monitored functionality, and safety features make it an ideal choice for commercial, industrial, and residential installations.
