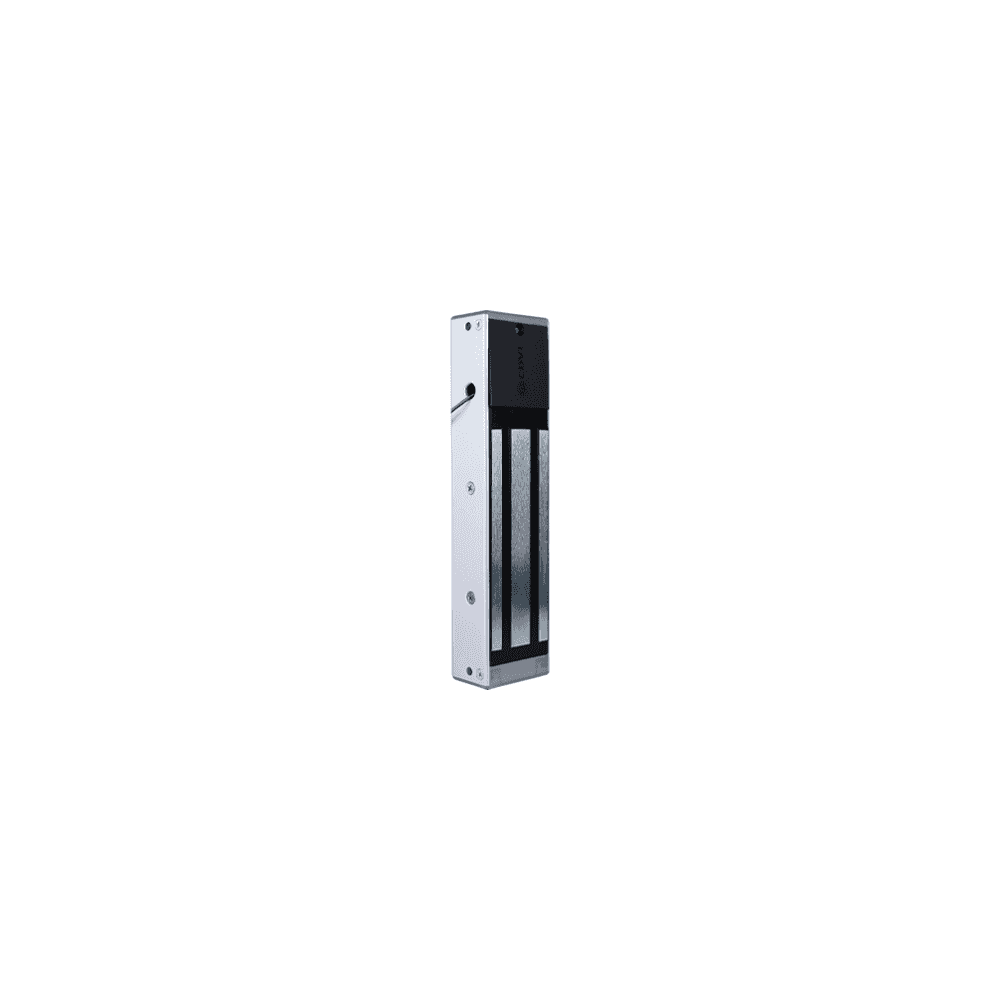

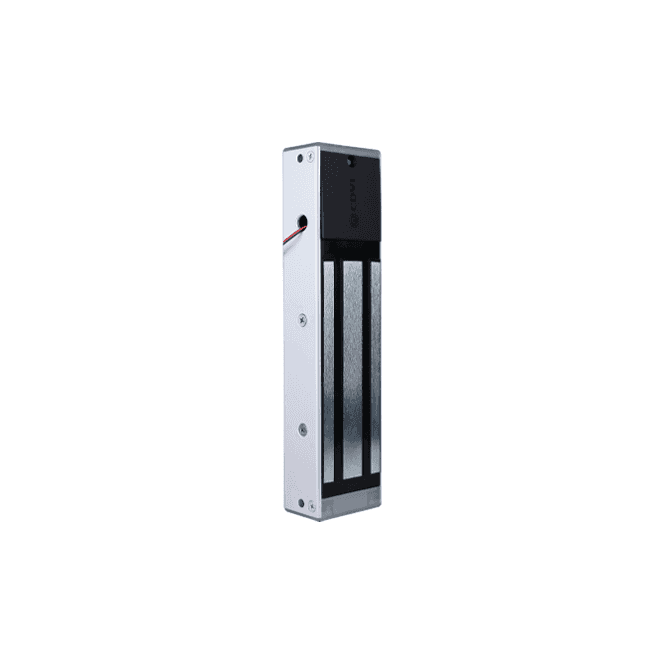

The CDVI V5SRB is a high-performance monitored surface magnetic lock with a holding force of up to 500kg. This model includes audible feedback, enhancing security by providing immediate status alerts. Additionally, it features innovative visual indication, making it easier to monitor lock status at a glance. Each magnet is supplied in professional packaging with security “catch” ropes for safe installation, ensuring the locks can be mounted without risk of injury.
The V5SRB surface mounted magnetic lock from CDVI provides a robust holding force of up to 500kg, ensuring reliable door security in various applications. Its monitored functionality, combined with audible feedback and innovative visual indication, allows for real-time status updates, enhancing overall security management.
This magnetic lock is designed for surface mounting and operates on either 12Vdc or 24Vdc, offering flexibility for different power configurations. The lock includes security “catch” ropes, which prevent the magnetic lock from falling during installation, ensuring safety and ease of installation.
The V5SRB is IP42 rated, providing protection against dust and water ingress, making it suitable for both indoor and outdoor installations. This magnetic lock is part of CDVI's commitment to high-quality and high-performance locking solutions, ensuring enhanced security for your installations.
| Specification | Details |
|---|---|
| Holding Force | 500 kg |
| Monitoring | Lock status - COM, NO, NC |
| Audible Feedback | Yes |
| Visual Indication | Innovative visual status |
| Voltage | 12/24Vdc |
| Current | @12Vdc = 550mA; @24Vdc = 275mA |
| Dimensions | 266 x 66 x 40mm |
| IP Rating | IP42 |
The CDVI V5SRB magnetic lock is designed for high-security applications where reliable and robust locking solutions are required. Its high holding force, monitored functionality with audible feedback and innovative visual indication, and safety features make it an ideal choice for commercial, industrial, and residential installations.
