Product Overview

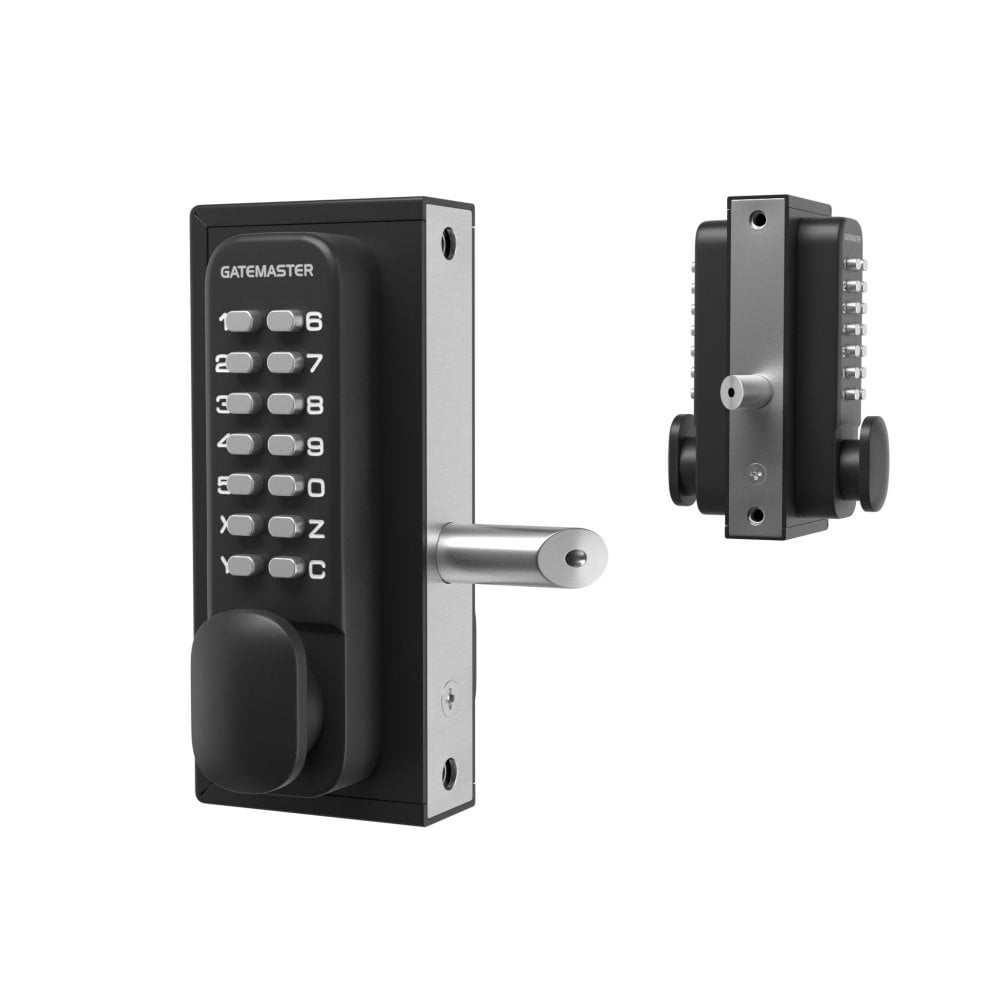

The Gatemaster BDG Superlock digital double-sided lock is a perfect solution for securing box section metal gate frames. This lock combines durability and ease of installation, featuring a slim 70mm wide lock case and an adjustable latchbolt for precise fitting. Made from stainless steel, it ensures ultimate outdoor durability and long-lasting performance.

Key Features

• Digital double-sided lock with keypads on both sides
• Slim 70mm (2-3/4") wide lock case
• Made from stainless steel for outdoor durability
• Adjustable and removable latchbolt for easy fitting
• Latchbolt moves 15mm (5/8") deep into the gatepost
• Durable design reduces friction and wear
• Non-handed, suitable for both left and right hand gates

Product Description

The Gatemaster BDG Superlock digital double-sided lock provides a secure and durable locking solution for metal gate frames up to 60mm. This lock features keypads on both sides, ensuring convenience and security from either direction. The slim design makes it easy to fit on most gate frames, while the adjustable latchbolt allows for precise installation.

Constructed from stainless steel, the BDG Superlock is built to withstand outdoor conditions, offering long-term durability and reliability. The latchbolt moves 15mm (5/8") into the gatepost, providing a deep and secure lock. Additionally, the latchbolt is supported on the edge of the gatepost to minimize friction and wear, enhancing the lock's lifespan.

This lock is non-handed, making it suitable for both left and right hand gates. It comes in two models to fit different gate frame sizes:

• BDG1030: Fits 10-30mm (1/2" - 1-1/4") gate frames
• BDG4060: Fits 40-60mm (1-1/2" - 2-1/4") gate frames

Installation Instructions

1. Drill 2 x 9mm (3/8") holes at 140mm (5 1/2") centres for fixing bolts provided.
2. Drill an 18mm (3/4") clearance hole for the latchbolt at 60mm (2 3/8") centres up from the bottom fixing hole.
3. Hold the lock against the back of the box section and screw on the latchbolt through the larger hole.
4. Lock the latchbolt with the hex key supplied by inserting the hex key into the end of the latchbolt.
5. Fix the lock in place using the stainless steel bolt support plate and the countersunk screws provided. Ensure the latchbolt moves freely.
6. Fix the strike plate by either welding or screw fixing onto the gate post.

Maintenance

Every 6 months:

1. Remove keypads from the lock.
2. Spray the inside of the lock thoroughly with WD40 or equivalent through the tumbler holes at the back of the lock.
3. Spray all the fixing accessories and the latch with WD40 or equivalent.
4. Push each of the buttons and rotate the knob several times to ensure the lock is working smoothly.

Product Details

Dimensions

Specific dimensions are available upon request or from the product specifications sheet.
