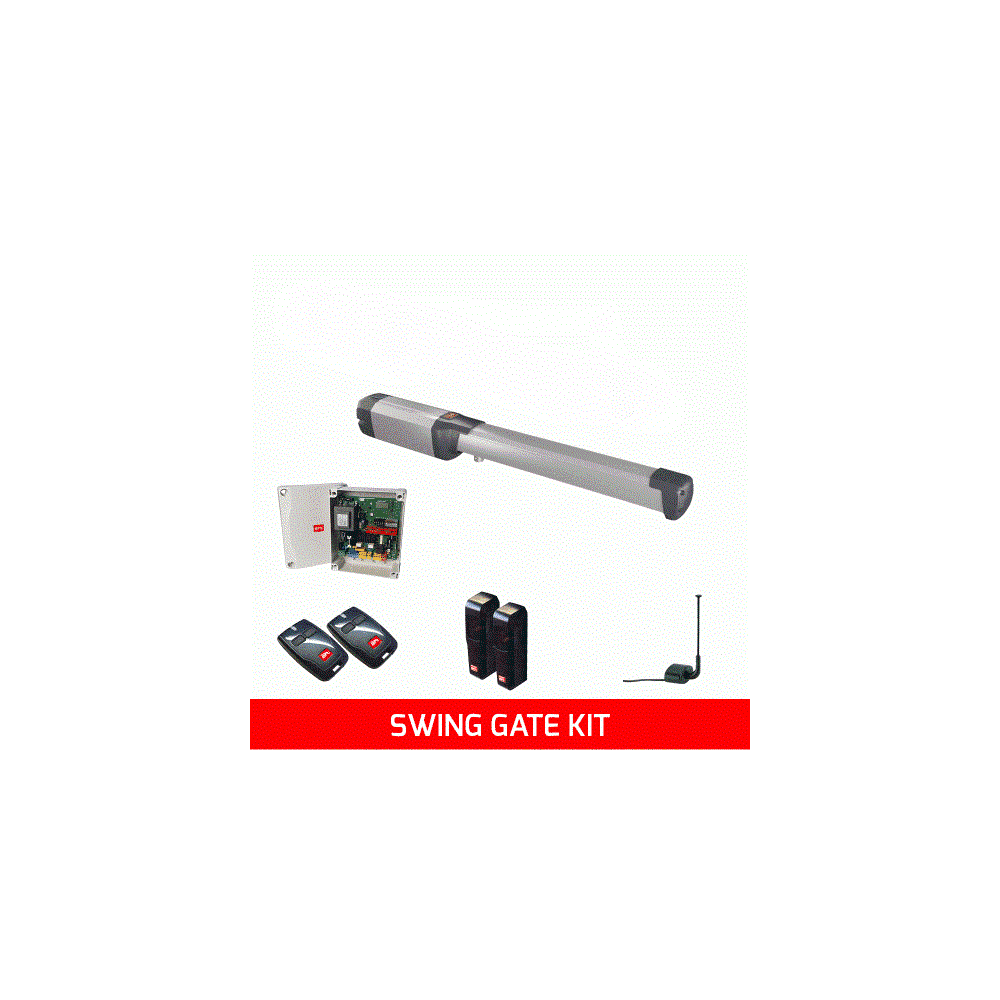

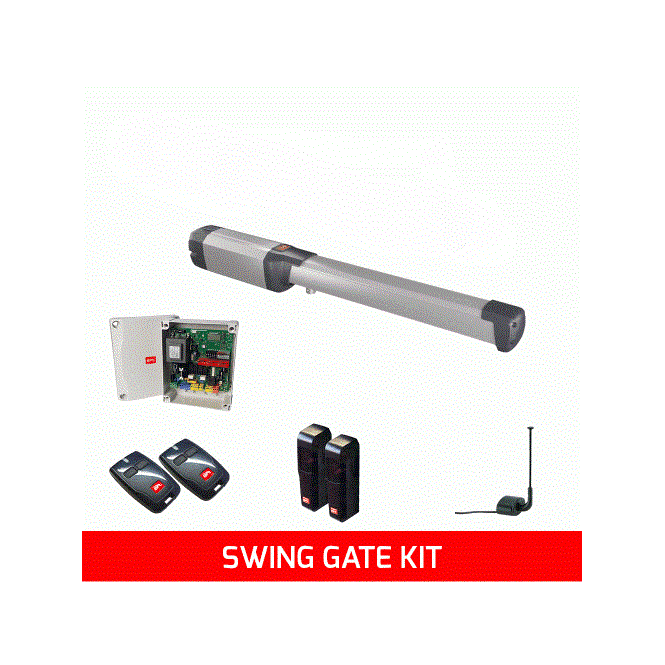

The Phobos AC B25 2.5m Standard Stroke Single Kit is a 230V electromechanical swing gate operator designed for residential use. This operator is capable of handling swing gates up to 2.5 meters in length and weighing up to 400kg. The Phobos AC B25 offers high-speed opening and closing with an almost silent operation, ensuring a reliable and efficient solution for automating your swing gates. The motor is irreversible, and the manual release for opening is accessed with a simple triangular key locking system.
The Phobos AC B25 2.5m Standard Stroke Single Kit is engineered to automate swing gates up to 2.5 meters in length and 400kg in weight per leaf. Ideal for residential properties, this 230V gate operator offers robust performance with high-speed and silent operation. The exclusive Hi-Tech design ensures that the Phobos AC B25 is not only functional but also stylish, fitting seamlessly into various installation conditions, even with limited space or thick pillars.
The motor's high-speed operation ensures quick and efficient gate movement, reducing waiting times and enhancing convenience. The almost silent operation minimizes noise, creating a quieter environment. The operator is equipped with an electronic clutch for impact reaction and a work time limit switch for precise control. The manual release feature, accessible via a simple triangular key locking system, allows for manual operation in case of emergencies.
| Specification | PHOBOS AC B25 |
|---|---|
| Board Power Supply | 230 V |
| Control Unit | RIGEL 6 |
| Operator Weight | 5 kg |
| Operator Type | Electromechanically operated swing gates |
| Max. Weight of Door/Gate Wing | 400 kg |
| Max. Width of Door/Gate Wing | 2.5 m |
| Max. Length Gate Panel Without Electric Lock | 1.8 m |
| Motor Voltage | 230 V |
| Power Consumption | 210 W |
| Thrust and Traction Force | 2000 N |
| Useful Rod Stroke | 360 mm |
| Maximum Angle | 119° |
| Movement Time (90°, Excluding Slowdown, with Maximum Gate Size and Weight) | Approx. 18 s |
| Type of Limit Switch | Work time |
| Slowdown | Yes |
| Impact Reaction | Electronic clutch |
| Locking | Mechanical |
| Release | Personal key |
| Max. Opening Cycles per Hour | 30 |
For further inquiries or additional information regarding this product, please contact us through our inquiry form.
