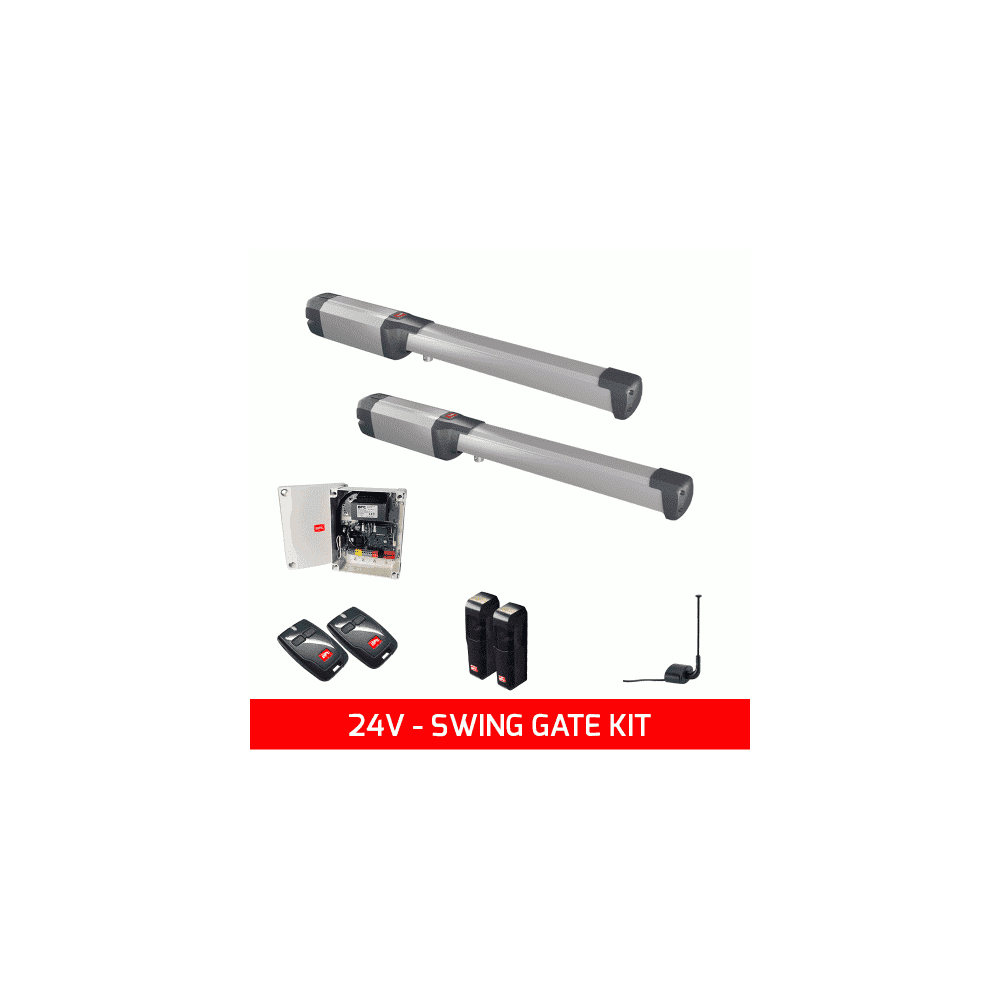

The Phobos BT B40 4m Long Stroke Twin Kit is a 24V electromechanical swing gate operator designed for residential use. This robust operator is capable of handling swing gate leaves up to 4 meters wide and weighing up to 500kg. Featuring a high-speed, almost silent operation, the Phobos BT B40 provides a reliable and efficient solution for automating your swing gates. The motor is irreversible and comes with a manual release accessed via a simple triangular key locking system. Built-in obstacle detection is provided through the D-Track torque management system.
The Phobos BT B40 4m Long Stroke Twin Kit is engineered to automate swing gates up to 4 meters in length and 500kg in weight per leaf. Ideal for residential properties, this 24V gate operator offers robust performance with fast and silent operation. The exclusive Hi-Tech design ensures that the Phobos BT B40 is not only functional but also stylish, fitting seamlessly into various installation conditions, even with limited space or thick pillars.
The 24V technology combined with electronic control helps to keep people safe from impacts without needing additional safety devices. The D-Track technology increases the safety of the automation by ensuring the thrust applied is the minimum necessary to ensure movement, adapting to changes in usage and environmental conditions, thus reducing maintenance operations.
The Phobos BT B40 features easy-to-adjust limit switches, positioned at the top of the motor, with a patented vibration or flashing light feedback function, simplifying the installation process. The motor's fast opening and closing speeds dramatically reduce waiting times, making entry to the property quicker and safer. The unit can also be fitted with BFT’s optional BT BAT buffer battery kit, allowing for continued automation in case of a temporary dip in mains power.
Specification | PHOBOS BT B40 |
---|---|
Board Power Supply | 230 V |
Control Unit | THALIA BT A80 |
Operator Type | Electromechanically operated swing gates |
Operator Weight | 5.2 kg |
Max. Width of Door/Gate Wing | 4 m |
Max. Length Gate Panel Without Electric Lock | 3 m |
Max. Weight of Door/Gate Wing | 700 kg |
Motor Voltage | 24 V |
Power Consumption | 40 W |
Thrust and Traction Force | 2000 N |
Useful Rod Stroke | 470 mm |
Maximum Angle | 130° |
Movement Time (90°, Excluding Slowdown, with Maximum Gate Size and Weight) | Approx. 16 s |
Type of Limit Switch | Magnetic |
Slowdown | Yes |
Impact Reaction | D-Track |
Locking | Mechanical |
Release | Personal key |
