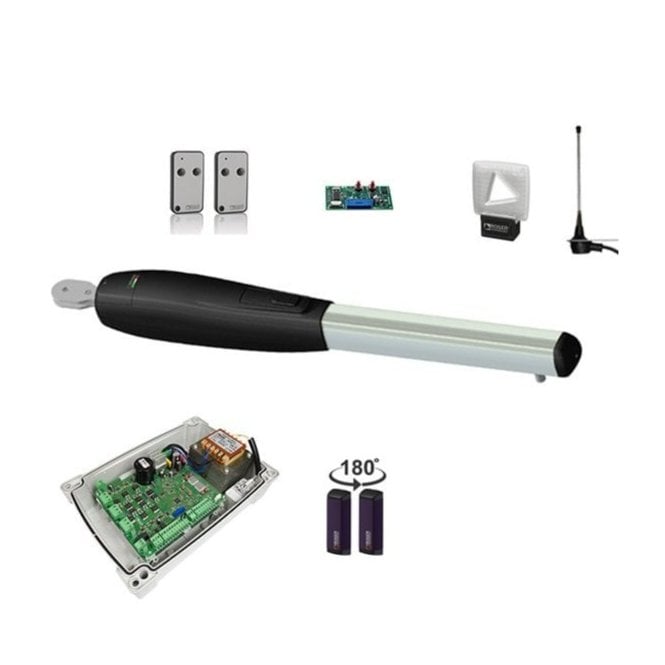

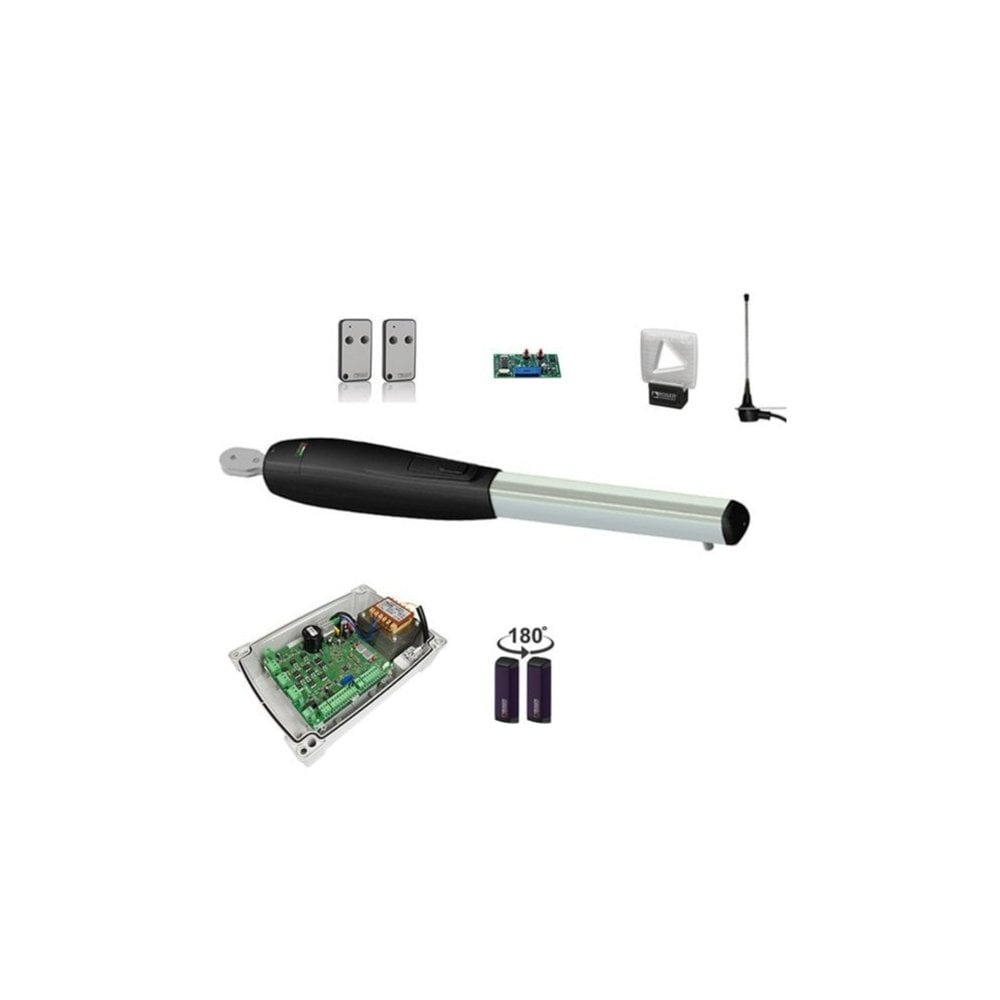

The SMARTY Brushless Single is a single 36V high-speed brushless electromechanical gear motor kit designed for extremely heavy-duty use. This kit comes with a mechanical stopper in both opening and closing. Depending on the chosen option, we provide the following variants:
Reversible Motors: Roger Technology reversible motors lock in the open and closed position while the power is on but unlock when the power goes off. This feature is useful for emergency free exits in the event of a power cut. Other brands' reversible motors are always unlocked and require an electric lock in the open and closed positions.
Specification | SMARTY4/HS | SMARTY5 | SMARTY5R | SMARTY7 | SMARTY7R |
---|---|---|---|---|---|
Power line supply | 230V AC - 50Hz | ||||
Motor power supply | 36V | ||||
Power rating (W) | 200 | ||||
Frequency of use | Intensive use | ||||
Thrust (N) | 600 - 4500 | 600 - 7000 | 600 - 6500 | 600 - 7000 | 600 - 6500 |
Operating temperature (°C) | -20 to +55 | ||||
Protection level | IP44 | ||||
Reductor Type | Irreversible | Irreversible | Reversible | Irreversible | Reversible |
Manoeuvre speed (cm/s) | 2 - 1 | 1.6 | 1.8 | 1.6 | 1.6 |
Opening time (s) | 15-25 | 25-40 | 20-40 | 35-50 | 35-50 |
Stroke (mm) | 370 | 370 | 370 | 520 | 520 |
Limit switch | Mechanical stopper in opening and closing | ||||
Recommended digital controllers | 230V: EDGE1/BOX - 115V: EDGE1/BOX/115 | ||||
Encoder | Digital native encoder SENSORLESS 48 PPR | Digital native encoder SENSORLESS 48 PPR + EMA | Digital native encoder SENSORLESS 48 PPR | Digital native encoder SENSORLESS 48 PPR + EMA | Digital native encoder SENSORLESS 48 PPR |
Operating cycles per day (opening/closing - 24 hours no stop) | 1000 | ||||
Maximum dimension product (L x W x H in mm) | 1162 x 116 x 165 | 1312 x 116 x 165 | 1312 x 116 x 165 | 1312 x 116 x 165 | 1312 x 116 x 165 |
For further inquiries or additional information regarding this product, please contact us through our inquiry form.
