Product Overview

The SpinS12705 Electro-Mechanical Operator Kit is designed for gates up to 2.5 meters in width and 200 kilograms in weight. This kit includes all necessary components for efficient and reliable gate automation, featuring a 230V electromechanical joint arm drive for smooth operation.

Product Description

The SpinS12705 Electro-Mechanical Operator Kit offers a comprehensive solution for automating swing gates. With a maximum gate wing weight of 200 kg and a width of up to 2.5 m, this kit provides robust performance. The electromechanical joint arm drive ensures smooth motion, while the self-impeding feature blocks the gate for added security. An integrated final switch and simple emergency release with a box spanner enhance functionality and ease of use.

The control ST51 allows direct adjustment of opening and closing strength, ensuring precise control over gate movements. The gentle stop feature, in combination with control ST50, provides a smooth operation. The kit supports an aperture angle of up to 120 degrees and a piston stroke/rotational speed of 9°/sec, with a maximum thrust/torque of 400 Nm. The kit includes two SPIN operators, control unit ST51, a two-channel radio receiver, a four-channel remote transmitter, a keyswitch with synthetic material and three keys, and a photocell LS 40.

Key Features

• Electromechanical Joint Arm Drive: Provides smooth and reliable gate operation.
• Self-Impedance: Blocks the gate for enhanced security.
• Integrated Final Switch: Simplifies installation and operation.
• Emergency Release: Simple emergency release with a box spanner.
• Adjustable Strength: Direct adjustment of opening and closing strength via control unit ST51.
• Gentle Stop Feature: Ensures smooth stopping in combination with control ST50.
• Wide Aperture Angle: Supports up to 120 degrees of gate opening.
• Robust Construction: Suitable for gates up to 200 kg and 2.5 m width.

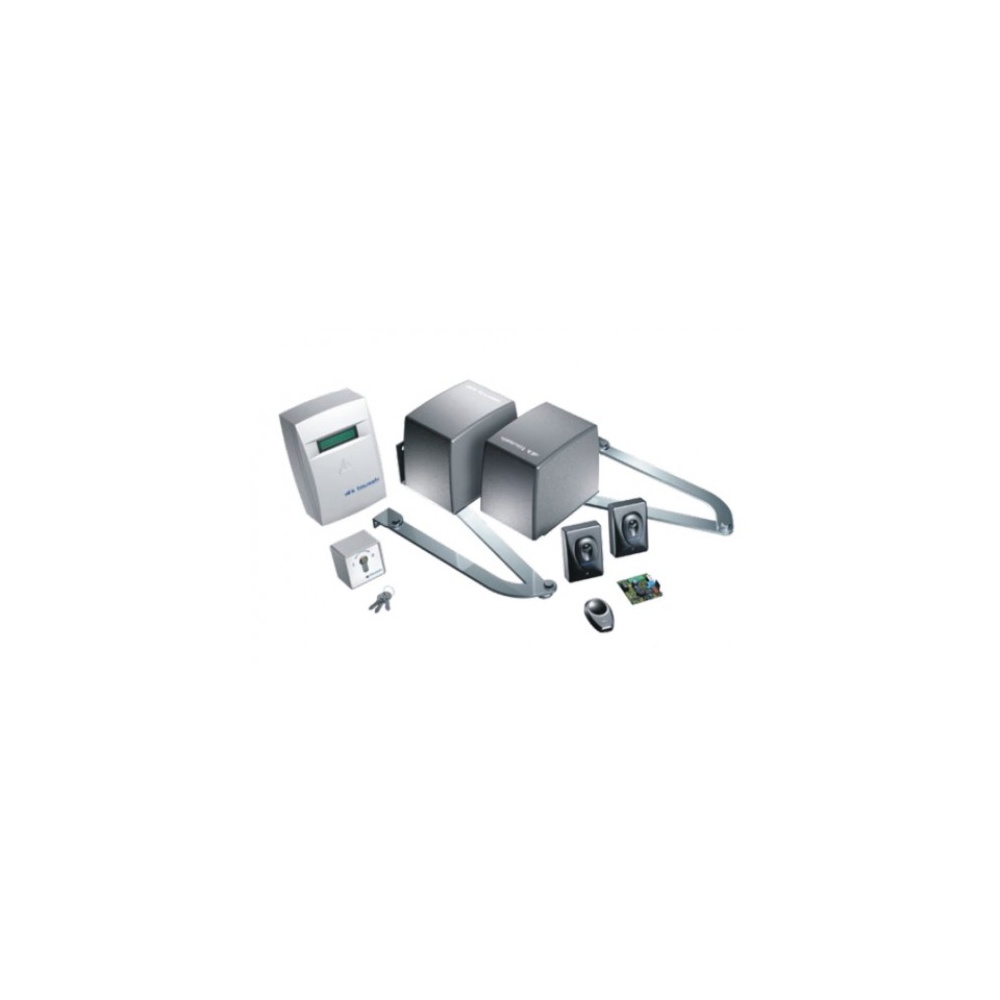

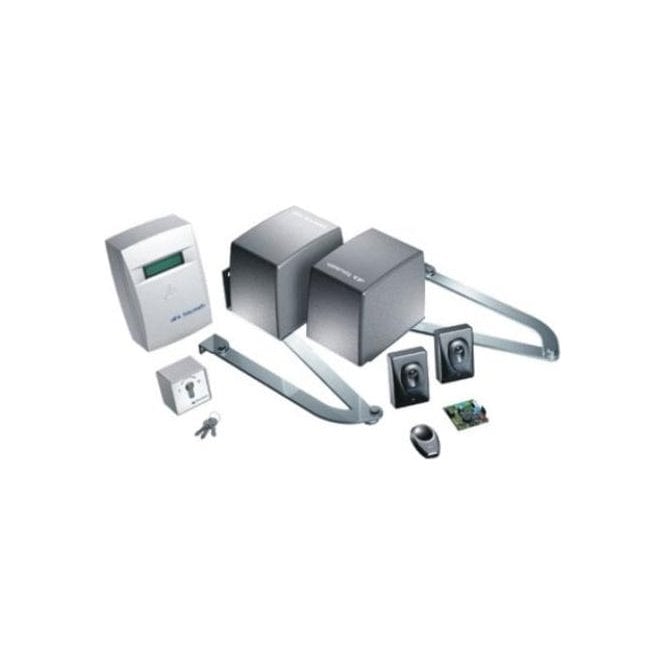

What's in the Box

• 2 x SPIN operators incl. installation material
• 1 x Control unit ST51
• 1 x Radio receiver RS 868 2 channel
• 1 x Remote transmitter 4 channel RS 868
• 1 x Keyswitch AP/UP 2 T. Synthetic material with PHZ and 3 keys
• 1 x Photocell LS 40

Specifications

• Max Gate Wing Weight: 200 kg
• Max Gate Wing Width: 2.5 m
• Engine Tension: 230 V
• Piston Stroke/Rotational Speed: 9°/sec
• Max Thrust/Torque: 400 Nm
• Max Aperture Angle: 120 degrees
• Switching Duration: 20/day
