Product Overview

The Swing X4LH Single Kit 12721 is designed for swing gates up to 4.5 meters in length and 500 kilograms in weight. This robust kit includes a 230V motor, ensuring reliable and powerful operation. The kit comes complete with all necessary components for a smooth and efficient installation.

Product Description

The Swing X4LH Single Kit 12721 is engineered for swing gates up to 4.5 meters and 500 kilograms. It features a powerful 230V motor with a maximum shear force of 5,000N and a stroke length of 450mm. The motor operates at a speed of 11mm/s and provides a 120-degree opening angle. This kit includes a control unit ST 61, a receiver RS 868 2 channel, two transmitters RS 868 TXR-2B 2 channel, a signal lamp L.E.D, and a pair of photocells LS 41. The motor-gear unit is designed for reliable power transmission and maximum stability, while the high-quality materials ensure long-term operation.

Integrated limit stops facilitate easier installation, and the comfortable emergency release feature enhances user convenience. The smart Plug & Play controls offer maximum operating comfort, and the standard soft stop ensures smooth gate movement. The ARS Automatic Reversal System provides maximum safety, and the clever mounting design allows for smooth motion.

Key Features

• High Capacity: Suitable for gates up to 4.5 meters and 500 kilograms.
• Powerful Motor: 230V motor with a maximum shear force of 5,000N.
• Efficient Operation: Motor speed of 11mm/s with a 120-degree opening angle.
• Integrated Limit Stops: Simplifies the installation process.
• Emergency Release: Provides comfortable and easy manual operation in case of power failure.
• Plug & Play Controls: Ensures maximum operating comfort.
• Soft Stop Feature: Allows for smooth and gentle gate movement.
• Automatic Reversal System: Enhances safety by reversing the gate's motion when an obstacle is detected.
• High-Quality Materials: Ensures long-term durability and reliable operation.
• Clever Mounting Design: Facilitates smooth and efficient gate motion.

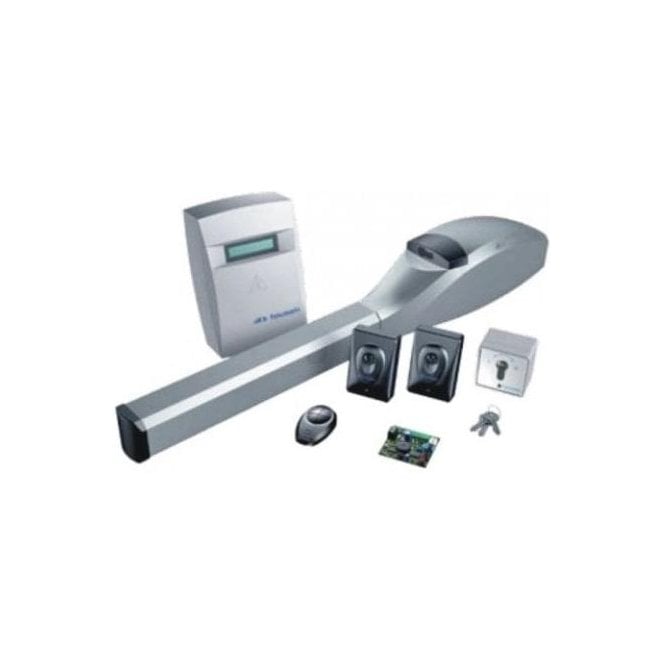

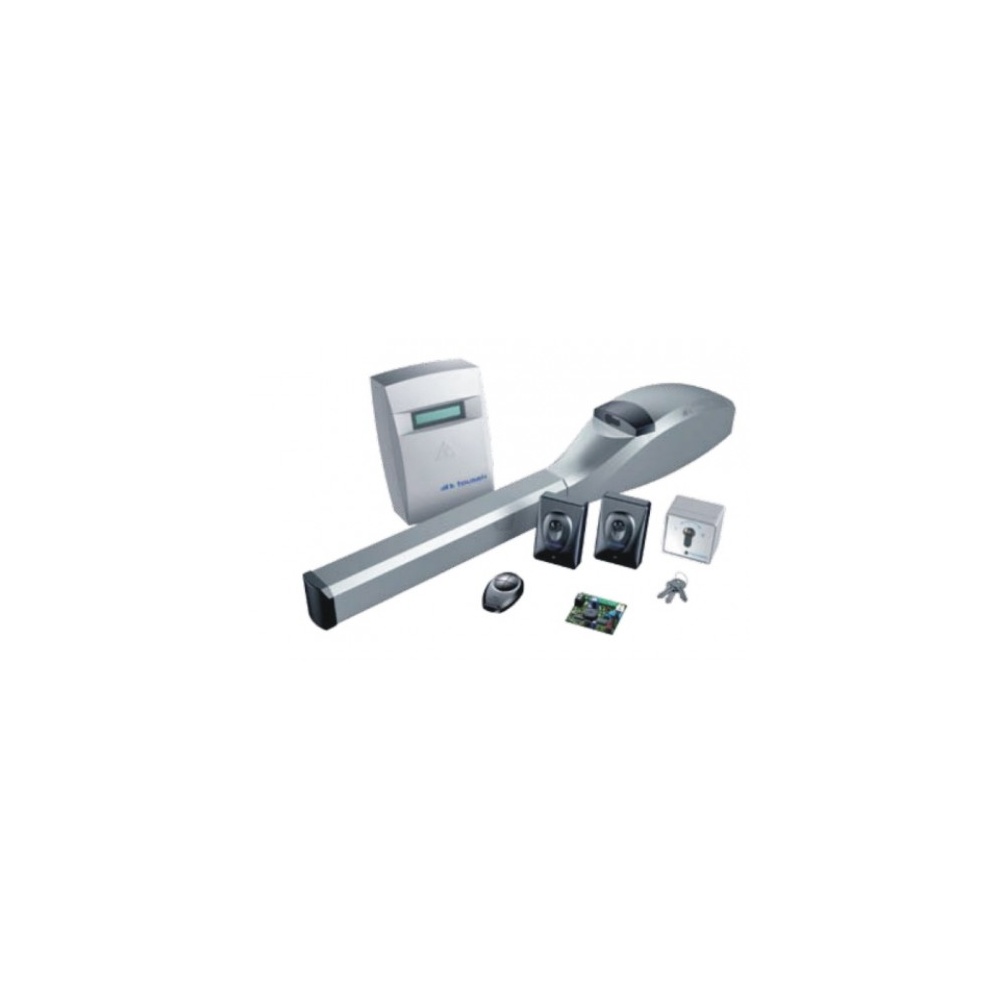

What's in the Box

• 1 x Motor plus mounting equipment
• 1 x Control unit ST 61
• 1 x Receiver RS 868 2 channel
• 2 x Transmitters RS 868 TXR-2B 2 channel
• 1 x Signal lamp L.E.D
• 1 x Pair of photocells LS 41

Specifications

• Gate Weight Capacity: Up to 500Kg
• Gate Length Capacity: Up to 4.5m
• Motor Power: 230V
• Motor Speed: 11mm/s
• Maximum Shear Force: 5,000N
• Stroke Length: 450mm
• Opening Angle: 120 degrees
