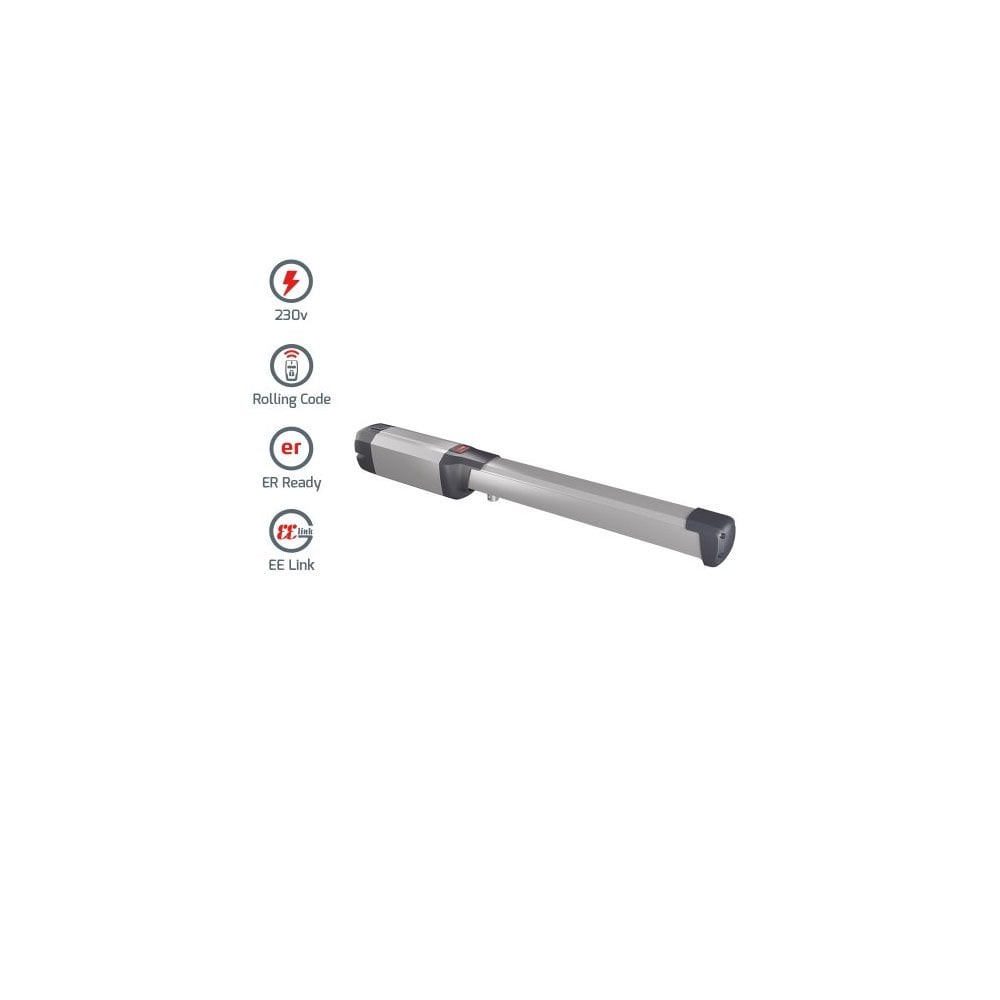

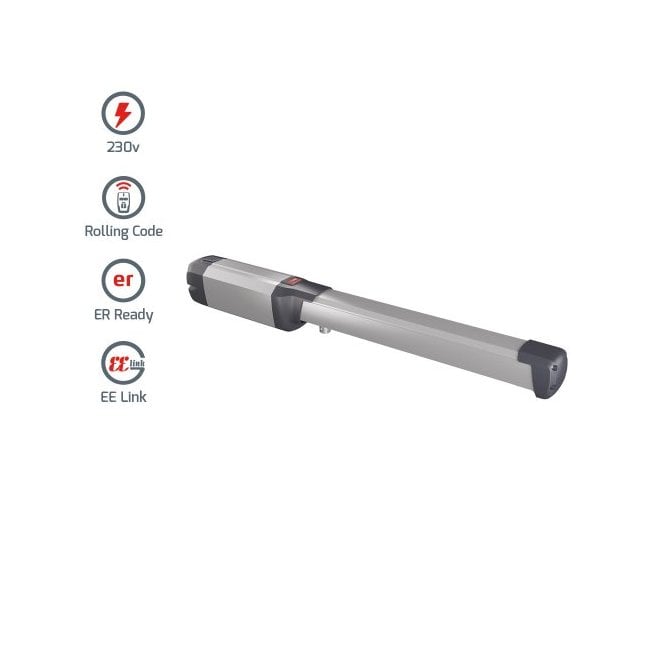

The Phobos AC B25 is a 230v electromechanical swing gate operator designed for residential use. This operator is equipped with a worm-drive and is suitable for swing gate leafs up to 2.5 meters wide and weighing up to 400kg. The Phobos AC B25 allows for high-speed opening and closing with almost silent operation. It features an irreversible motor with a manual release accessed by a simple triangular key locking system.
| Specification | Phobos AC B25 | Phobos AC B50 |
|---|---|---|
| Board Power Supply | 230 V | 230 V |
| Control Unit | RIGEL 6 | RIGEL 6 |
| Operator Weight | 5 kg | 7.7 kg |
| Operator Type | Electromechanically operated swing gates | Electromechanically operated swing gates |
| Max. Weight of Door/Gate Wing | 400 kg | 500 kg |
| Max. Width of Door/Gate Wing | 2.5 m | 5 m |
| Max. Length Gate Panel without Electric Lock | 1.8 m | 3 m |
| Motor Voltage | 230 V | 230 V |
| Power Consumption | 210 W | 210 W |
| Thrust and Traction Force | 2000 N | 2000 N |
| Useful Rod Stroke | 360 mm | 470 mm |
| Maximum Angle | 119 ° | 130 ° |
| Movement Time (90°, excluding slowdown, with maximum gate size and weight) | approx. 18 s | approx. 22 s |
| Type of Limit Switch | Work time | Work time |
| Slowdown | Yes | Yes |
| Impact Reaction | Electronic clutch | Electronic clutch |
| Locking | Mechanical | Mechanical |
| Release | Personal key | Personal key |
| Max. Opening Cycles per Hour | 30 | 30 |
The Phobos AC B25 Electromechanical Swing Gate Operator is designed to automate residential swing gates up to 2.5 meters in width and 400kg in weight. With its high-speed operation and silent motor, it offers a reliable and efficient solution for your gate automation needs. The exclusive Hi-Tech design and compact size make it versatile for various installation conditions, even with limited space or thick pillars.
The Phobos AC B25 features an Easy Set App that assists installers in defining the correct installation positions for achieving the desired opening angle and fluid movement. The motor's irreversible design ensures secure locking, while the manual release with a triangular key provides easy access for manual operation when needed.
The electromechanical operation, combined with an electronic clutch for impact reaction, enhances the safety and reliability of the Phobos AC B25. Its intensive use capability makes it suitable for frequent operation, making it an ideal choice for residential applications.
Available Kits:
