The HO7124 swing gate motor is designed for gates with leaves up to 2.4 meters, making it ideal for installations with large columns. This motor is equipped with a 24V DC electromechanical system, an articulated arm, and a built-in control unit, ensuring reliable and efficient operation for residential and semi-intensive use.

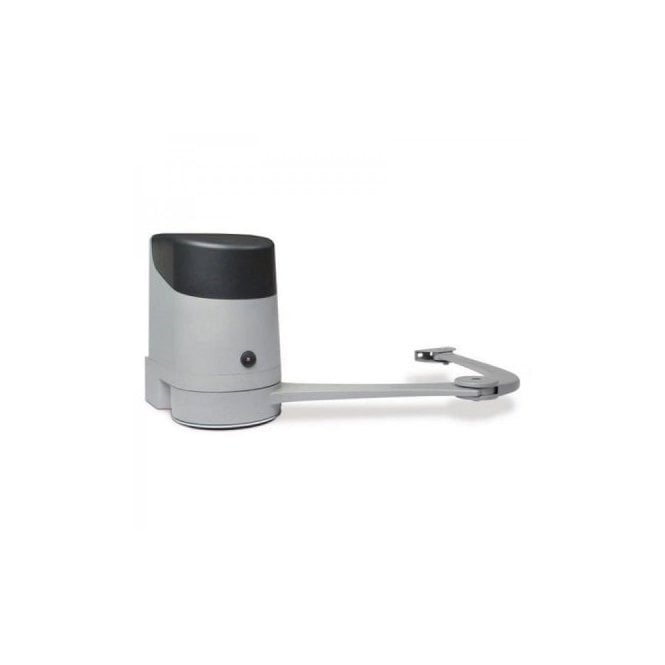

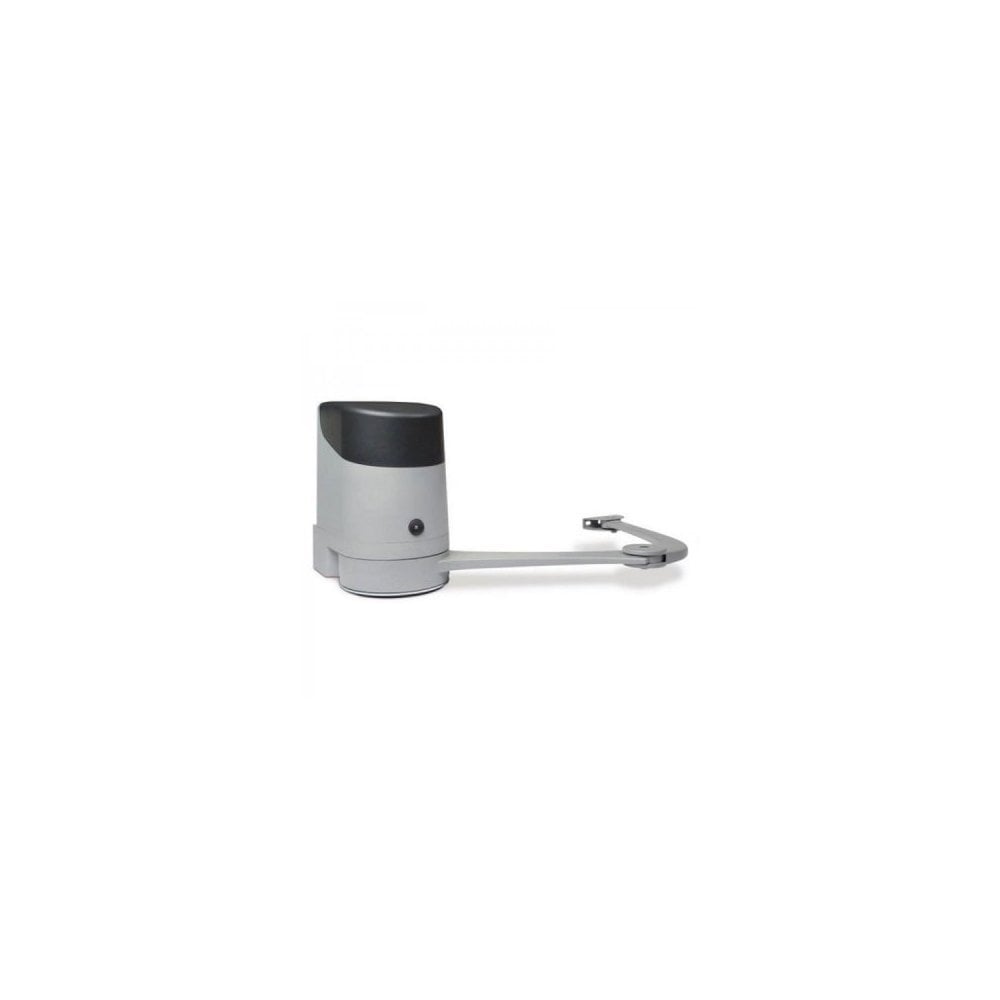

HO7124 | 24V DC Swing Gate Motor | For Gates up to 2.4 Meters
The HO7124 motor is designed to provide robust and reliable performance for swing gates, particularly those with large columns. The 24V DC motor ensures smooth and efficient operation, while the built-in control unit simplifies installation and management. The articulated arm design allows for easy adaptation to different gate sizes and configurations, providing a versatile solution for various gate automation needs.
Specification | Details |
---|---|
Gate Type | Swing gate |
Maximum Gate Length | 2400mm |
Installation | Above ground |
Motor Voltage | 24V DC |
Maximum Gate Weight | 250kg |
Maximum Opening Angle | 110 degrees |
Locking Method | Mechanically locking motor |
Operation | Wired |
Motor Type | Electromechanical |
Protection Rating | IP54 |
Gate Speed | 14 seconds to 90 degrees |
Duty Cycle | Semi-intensive |
The HO7124 swing gate motor offers several benefits for residential and semi-intensive use. The articulated arm allows for flexible installation, making it suitable for gates with large columns. The mechanically locking motor ensures security and reliability, while the built-in control unit provides easy operation and management. With its IP54 protection rating, the motor is well-protected against dust and water ingress, ensuring long-lasting performance.
Installing the HO7124 motor is straightforward, thanks to its above-ground design and built-in control unit. Regular maintenance is minimal, as the electromechanical components are designed for durability and long-term use. For optimal performance, ensure that the gate and motor are regularly inspected and serviced according to the manufacturer's recommendations.
For more information or to place an order, please contact us at sales@example.com or call us at 01234 567890.
