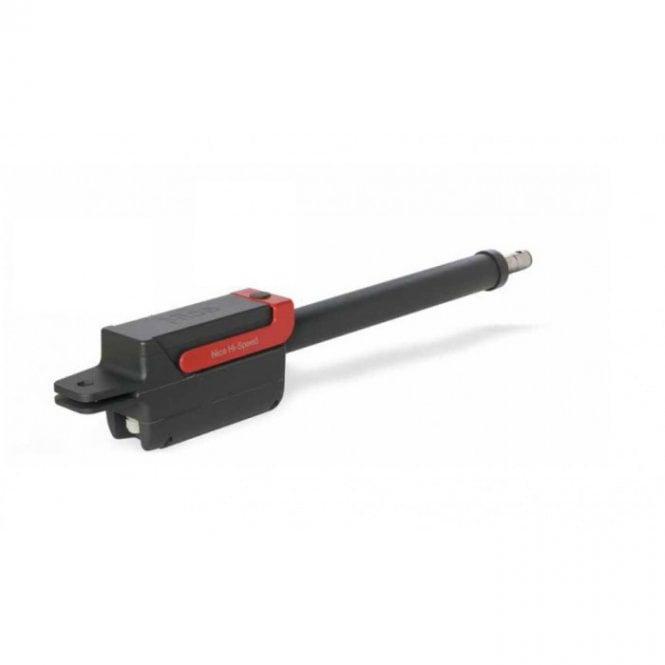

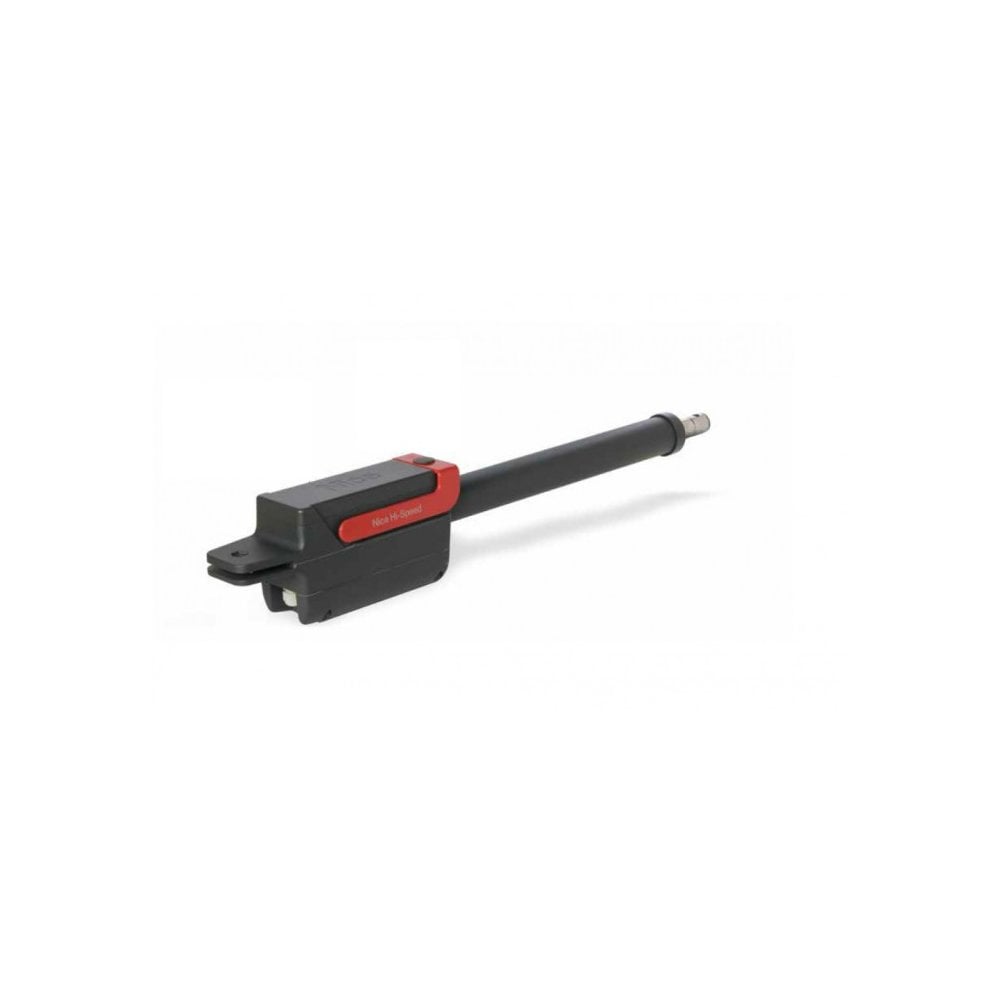

The TITAN HS TTN3724HS is a robust and fast swing gate motor designed for gates with leaves up to 3.7 meters in length or weighing up to 450 kg. This 24 Vdc non-reversible motor features a magnetic encoder for precise control, making it ideal for intensive use applications.
Specification | Details |
---|---|
Gate Type | Swing gate |
Max Length per Gate | 3700mm |
Above or Underground | Above ground |
Motor Voltage | 24 Vdc |
Max Weight per Gate | 450kg |
Max Opening Angle | 110 degrees |
Locking Method | Mechanically locking motor |
Motor | Electromechanical |
Protection Rating | IP 54 |
Gate Speed | 12 seconds for 90 degrees |
Duty Cycle | Intensive |
Obstacle Detection | Built-In Obstacle Detection |
Mains Power Supply | 230 V |
The TITAN HS TTN3724HS swing gate motor ensures fast and reliable automation for residential and commercial swing gates. Its 24 Vdc motor with a magnetic encoder provides precise and safe operation, while the built-in obstacle detection enhances safety. The motor's intensive duty cycle makes it suitable for frequent use.
The TITAN HS TTN3724HS is designed for easy installation with detailed instructions provided in the manual. Follow safety guidelines for optimal performance and longevity. The motor's magnetic encoder simplifies setup, making it suitable for a variety of applications.
The TITAN HS TTN3724HS is compatible with various gate automation systems and accessories. Consider additional accessories such as remote controls, safety photocells, and loop detectors for enhanced functionality and safety.
