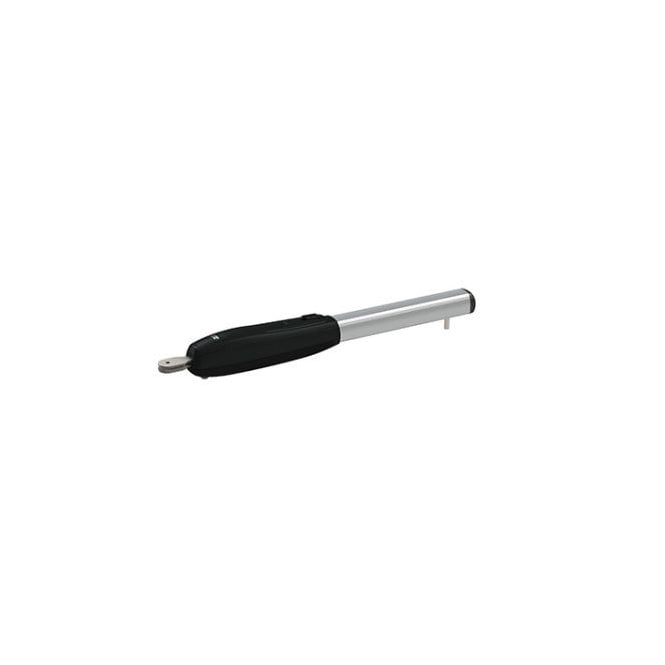

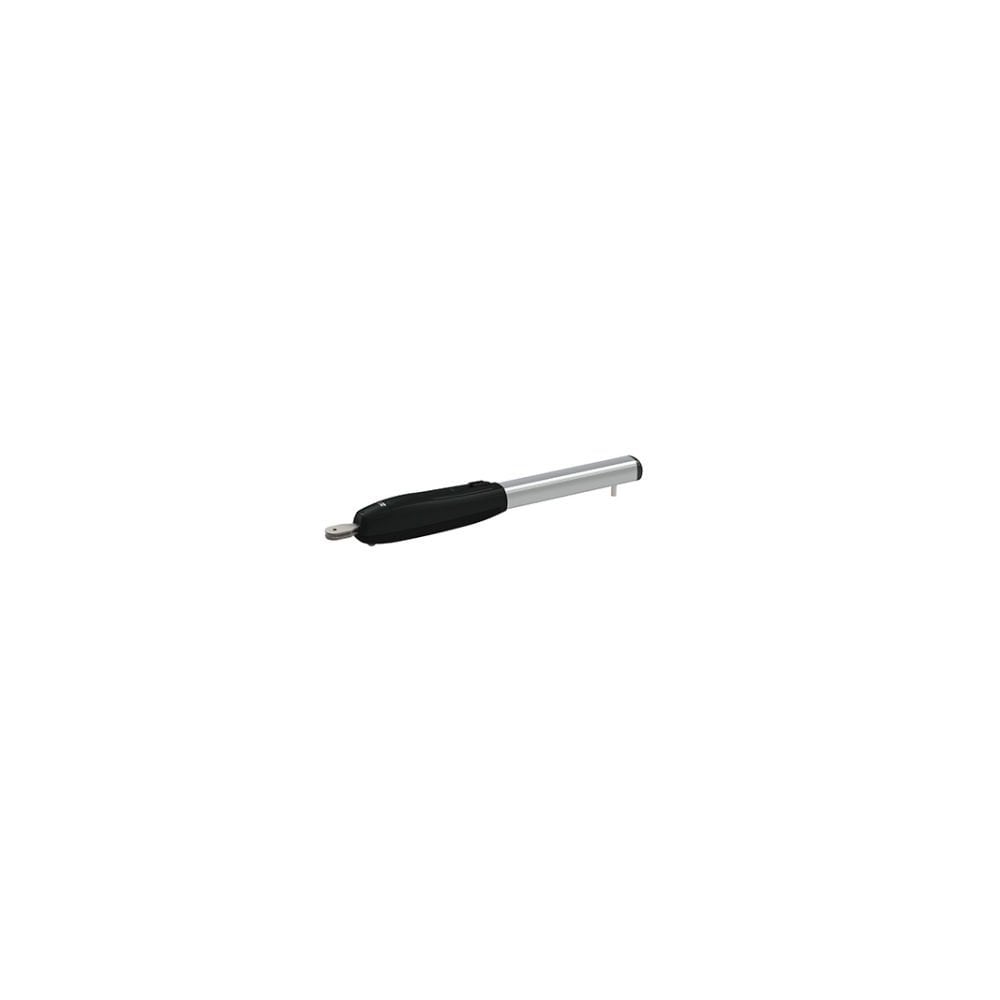

The SMARTY Brushless Motor is a high-performance 36V electro-mechanical gear motor designed for extremely heavy-duty applications. Ideal for swing gates with leaf lengths up to 7 meters, this motor offers both reversible and irreversible options to suit various needs. The SMARTY motor series includes high-speed variants and is equipped with a mechanical stopper for precise opening and closing.
Specification | SMARTY4/HS | SMARTY5 | SMARTY5R | SMARTY7 | SMARTY7R |
---|---|---|---|---|---|
Power line supply | 230V AC - 50Hz | ||||
Motor power supply | 36V | ||||
Power rating (W) | 200 | ||||
Frequency of use | Intensive use | ||||
Thrust (N) | 600 - 4500 | 600 - 7000 | 600 - 6500 | 600 - 7000 | 600 - 6500 |
Operating temperature (°C) | -20 to +55 | ||||
Protection level | IP44 | ||||
Reductor Type | Irreversible | Irreversible | Reversible | Irreversible | Reversible |
Manoeuvre speed (cm/s) | 2 - 1 | 1.6 | 1.8 | 1.6 | 1.6 |
Opening time (s) | 15-25 | 25-40 | 20-40 | 35-50 | 35-50 |
Stroke (mm) | 370 | 370 | 370 | 520 | 520 |
Limit switch | Mechanical stopper in opening and closing | ||||
Recommended digital controllers | 230V: EDGE1/BOX - 115V: EDGE1/BOX/115 | ||||
Encoder | Digital native encoder SENSORLESS 48 PPR | Digital native encoder SENSORLESS 48 PPR + EMA | Digital native encoder SENSORLESS 48 PPR | Digital native encoder SENSORLESS 48 PPR + EMA | Digital native encoder SENSORLESS 48 PPR |
Operating cycles per day (opening/closing - 24 hours non-stop) | 1000 | ||||
Maximum dimension product (L x W x H in mm) | 1162 x 116 x 165 | 1312 x 116 x 165 | 1312 x 116 x 165 | 1312 x 116 x 165 | 1312 x 116 x 165 |
Roger Technology reversible motors lock in the open and closed position while the power is on but unlock as the power goes off. This feature is useful if you need an emergency free exit in the event of a power cut. Other brands' reversible motors are always unlocked and require an electric lock in the open and closed positions.
For further inquiries or additional information regarding this product, please contact us through our inquiry form.
