Product Overview

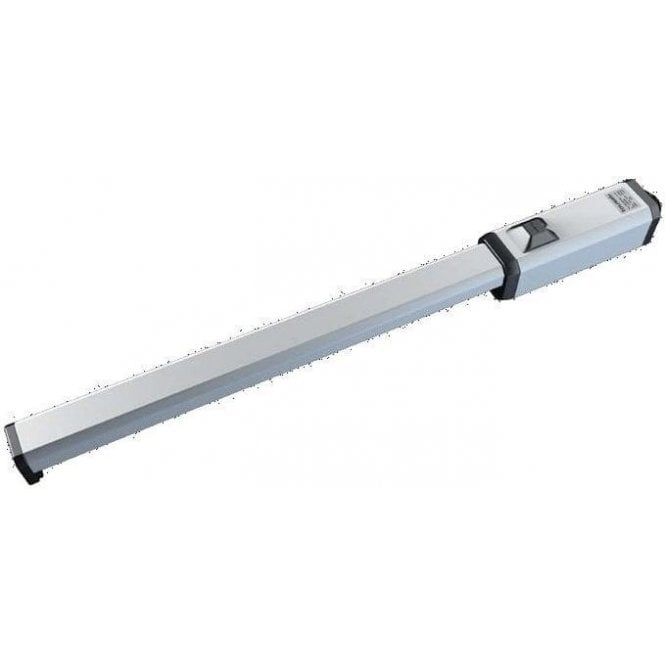

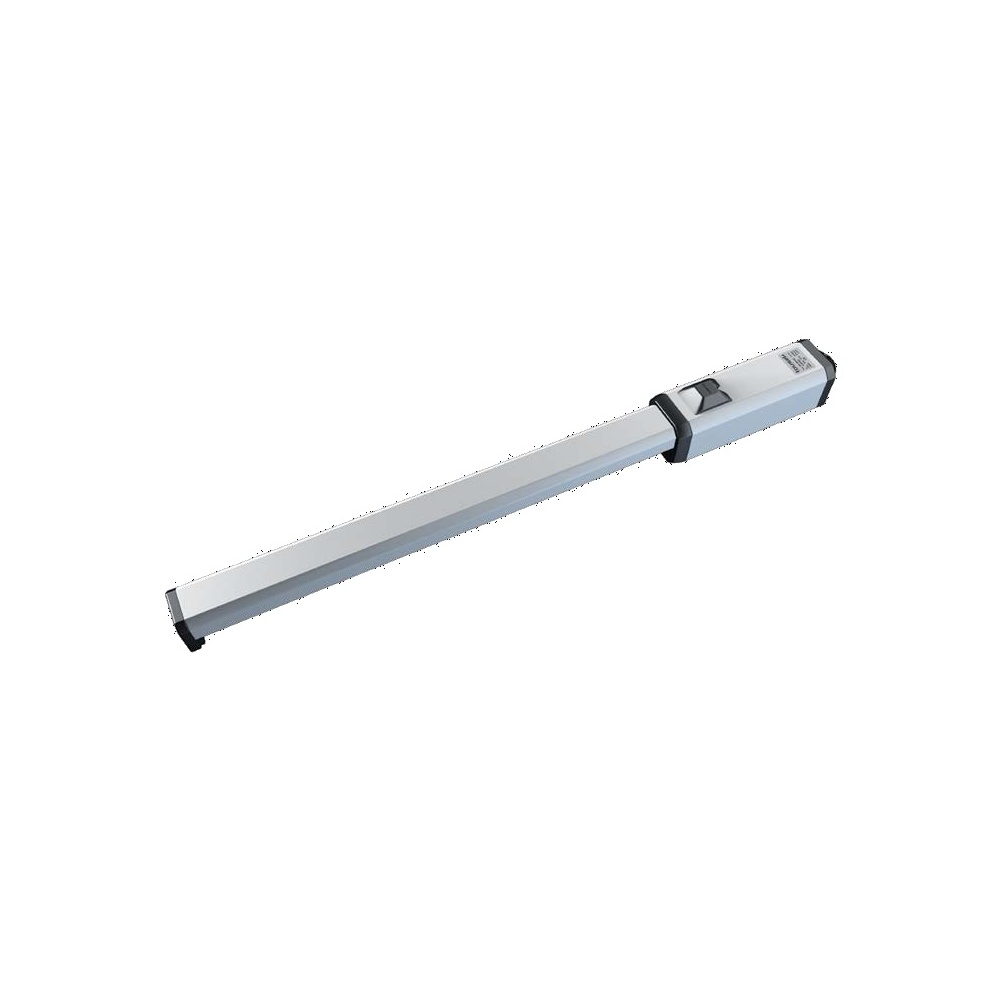

he Swing 265 AEB/44V1 Hydraulic Operator is designed for gates up to 3.0 meters in width and 600 kilograms in weight. This powerful operator offers high thrust, adjustable strength regulation, and maintenance-free operation, making it an ideal choice for robust and reliable gate automation.

Product Description

The Swing 265 AEB/44V1 Hydraulic Operator provides a high thrust of up to 4500 N, making it suitable for heavy-duty gate applications. The strength of the operator is regulated through bypass valves, and it features a closed hydraulic system that eliminates the need for ventilation, ensuring maintenance-free operation. The operator is housed in an anodized, elegant aluminum case, offering both durability and a sleek appearance. It is designed to operate efficiently even in low temperatures, down to -25°C, and includes a covered emergency release for added convenience.

The operator supports separate adjustable opening and closing strength via bypass valves, providing precise control over gate movements. With a maximum gate wing weight of 600 kg and a width of up to 3.0 m, this operator delivers reliable performance. The operator operates on a 230V power supply and features a piston stroke speed of 20 mm/sec, with a maximum piston stroke of 445 mm and an aperture angle of up to 110 degrees.

Key Features

• High Thrust: Provides up to 4500 N of thrust for heavy-duty applications.
• Strength Regulation: Adjustable opening and closing strength via bypass valves.
• Maintenance-Free: Closed hydraulic system eliminates the need for ventilation.
• Durable Construction: Anodized aluminum case for durability and aesthetics.
• Low Temperature Operation: Designed to function efficiently at temperatures as low as -25°C.
• Emergency Release: Covered emergency release for convenience and safety.
• Precise Control: Separate adjustable opening and closing strength for precise movement control.
• Robust Performance: Suitable for gates up to 600 kg and 3.0 m in width.

What's in the Box

• 1 x Swing 265 AEB/44V1 Hydraulic Operator
• 1 x Installation manual
• Necessary mounting hardware

Specifications

• Max Gate Wing Weight: 600 kg
• Max Gate Wing Width: 3.0 m
• Engine Tension: 230 V
• Piston Stroke Speed: 20 mm/sec
• Max Thrust: 4500 N
• Max Piston Stroke: 445 mm
• Max Aperture Angle: 110 degrees
• Operating Temperature: Down to -25°C
• Switching Duration: S3 40%
