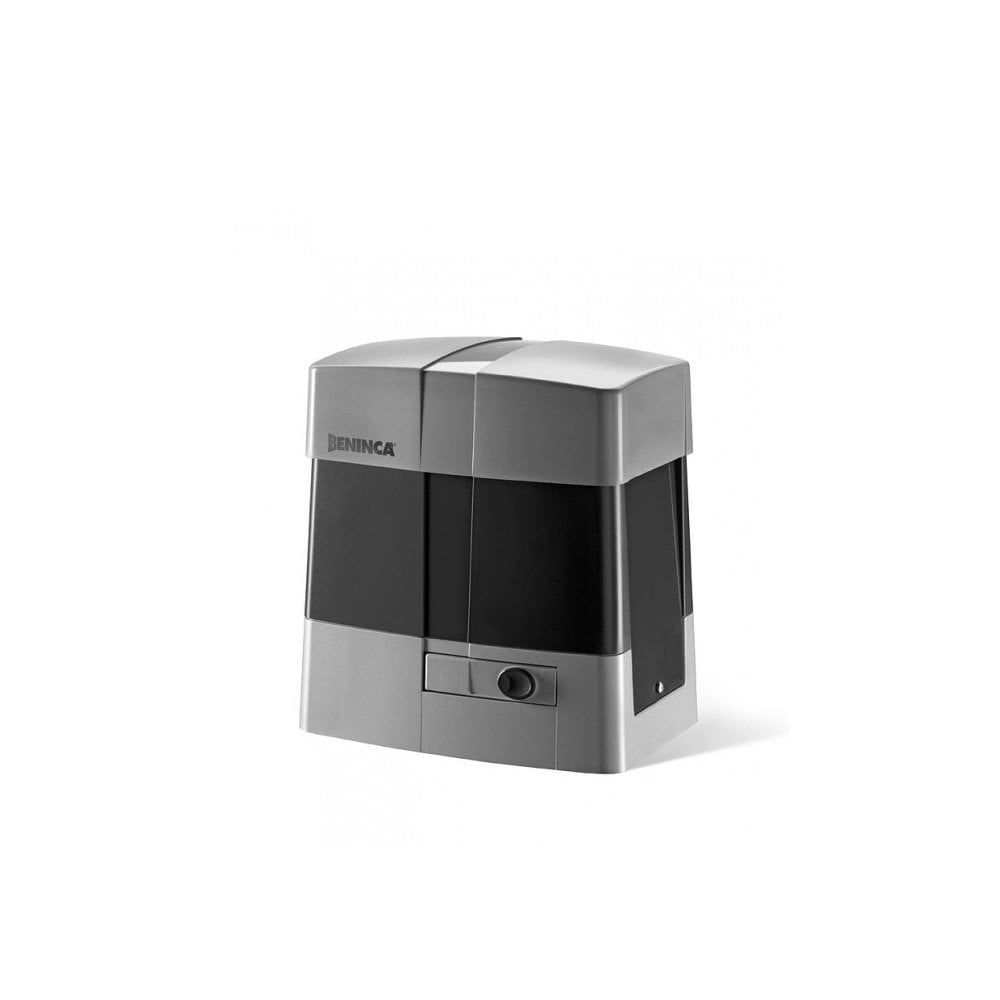

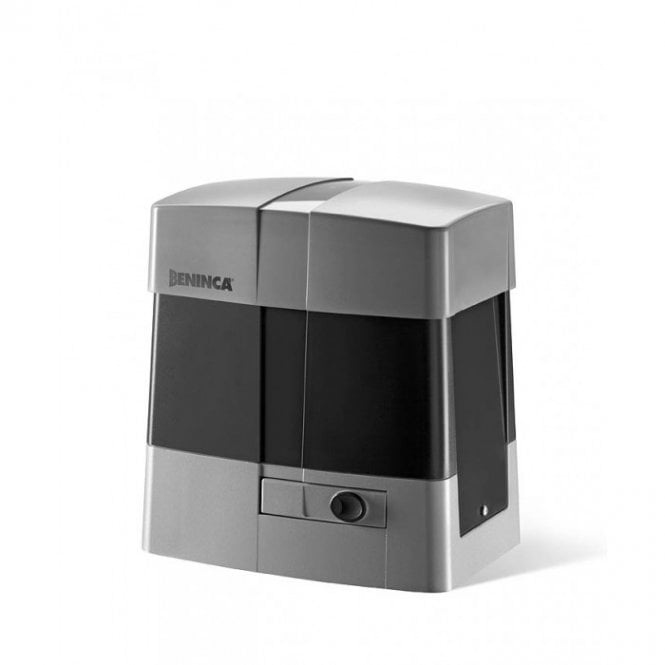

Self-ventilated 230 VAC geared motor for intensive use with oil lubricated reductions. Thanks to the characteristics of the new electric motor, this product is particularly indicated for very intense use. The encoder guarantees maximum safety and precision while the gate is moving. Metal release lever.
Technical Data | BULL20HE |
Power supply | 230 Vac (50-60Hz) |
Motor supply | 230 Vac |
Max absorbed current | 7 A |
Max Thrust | 1880 N |
Max opening speed | 24 m/min |
Duty cycle | 80%* |
Protection level | IP44 |
Magnetic limit switches | NO |
Operating temperature | -20°C / +50°C |
Lubrication | OIL |
Max gate weight | 2000 kg |
Driving gear for rack | M4 Z18 |
Weight | 21.6 kg |
Items no. per pallet | 20 |
* In extreme operating conditions (environment T 50°C, gate weight 2000 kg) the cycle falls to 60%
