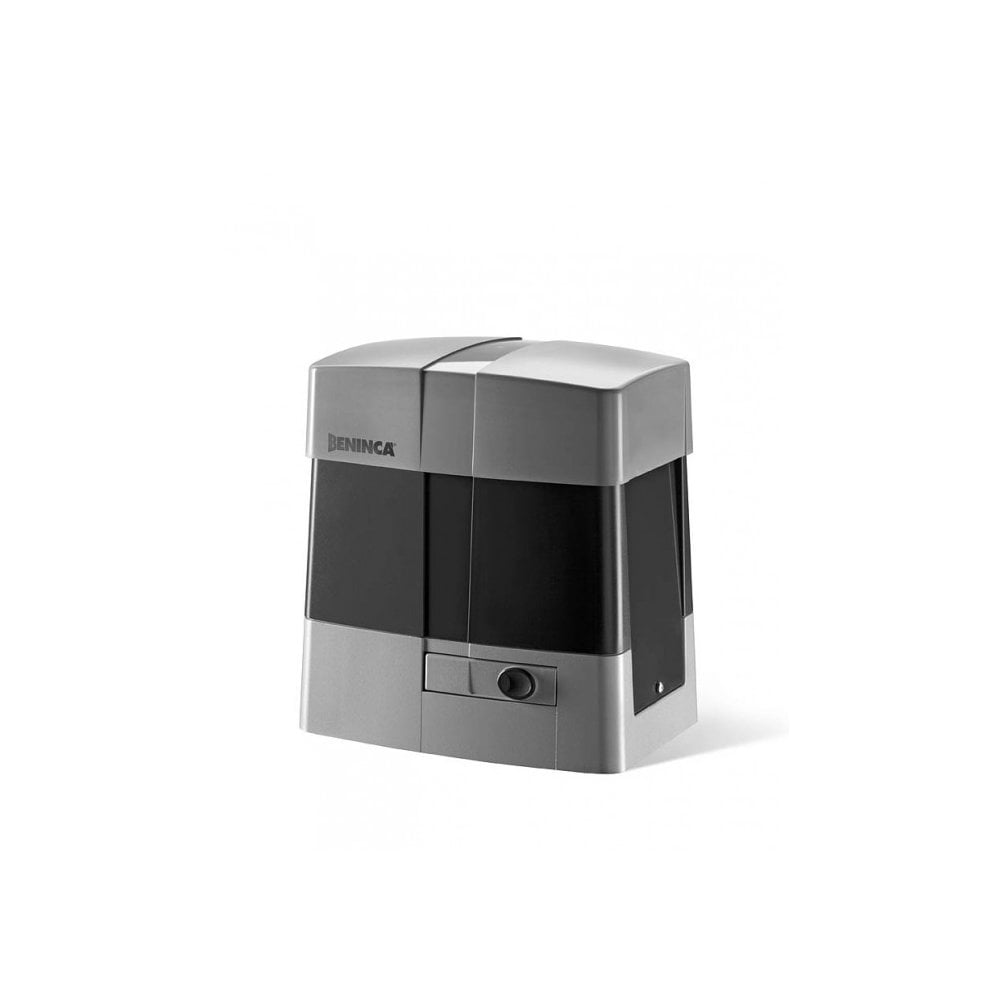

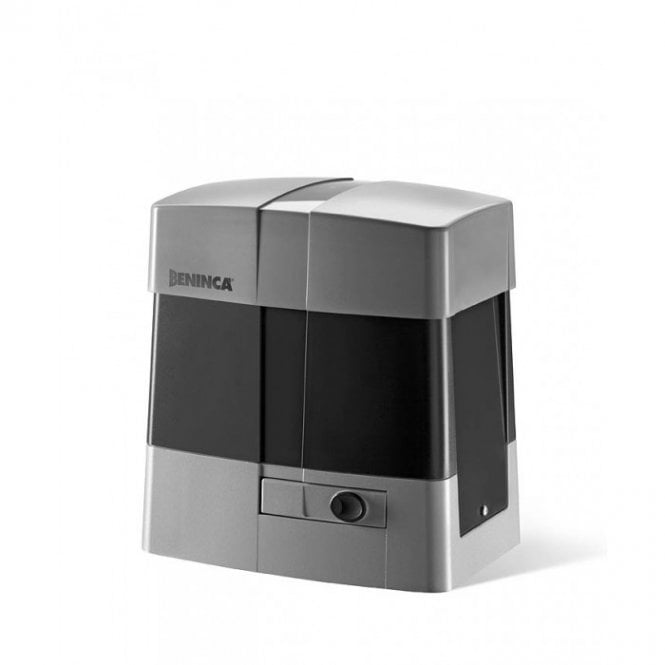

400 Vac three phase geared motor with external control unit and electronic braking. Self-ventilated motor for more intense use. Version equipped with magnetic limit switches available - contact us (BULL20T.S).
Technical Data | BULL20T | BULL20T.S |
Power supply | 400 Vac (50-60Hz) | 400 Vac (50-60Hz) |
Motor supply | 400 Vac | 400 Vac |
Max absorbed current | 1.7 A | 1.7 A |
Max Thrust | 2000 N | 2000 N |
Opening speed | 10.5 m/min | 10.5 m/min |
Duty cycle | intensive use | intensive use |
Protection level | IP44 | IP44 |
Built-in control unit | NO | NO |
Magnetic limit switches | NO | YES |
Operating temperature | -20°C / +50°C | -20°C / +50°C |
Max gate weight | 2000 kg | 2000 kg |
Driving gear for rack | M4 Z18 | M4 Z18 |
Weight | 21.3 kg | 21.4 kg |
Items no. per pallet | 20 | 20 |
