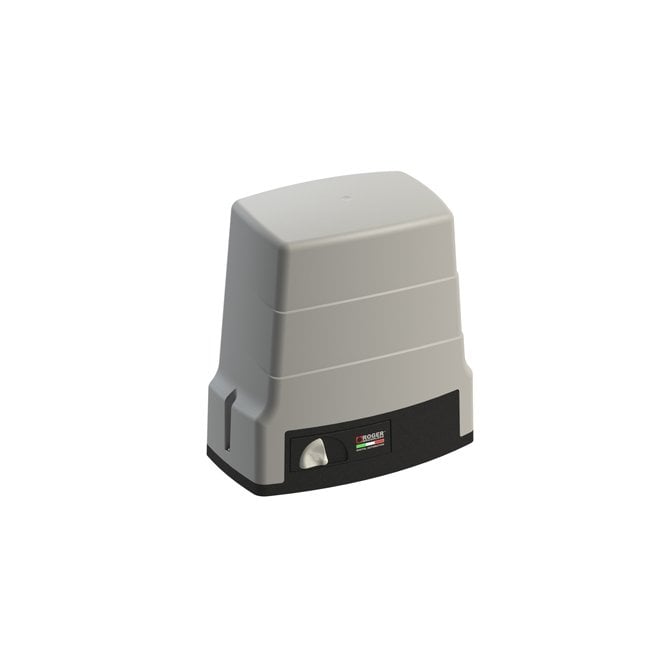

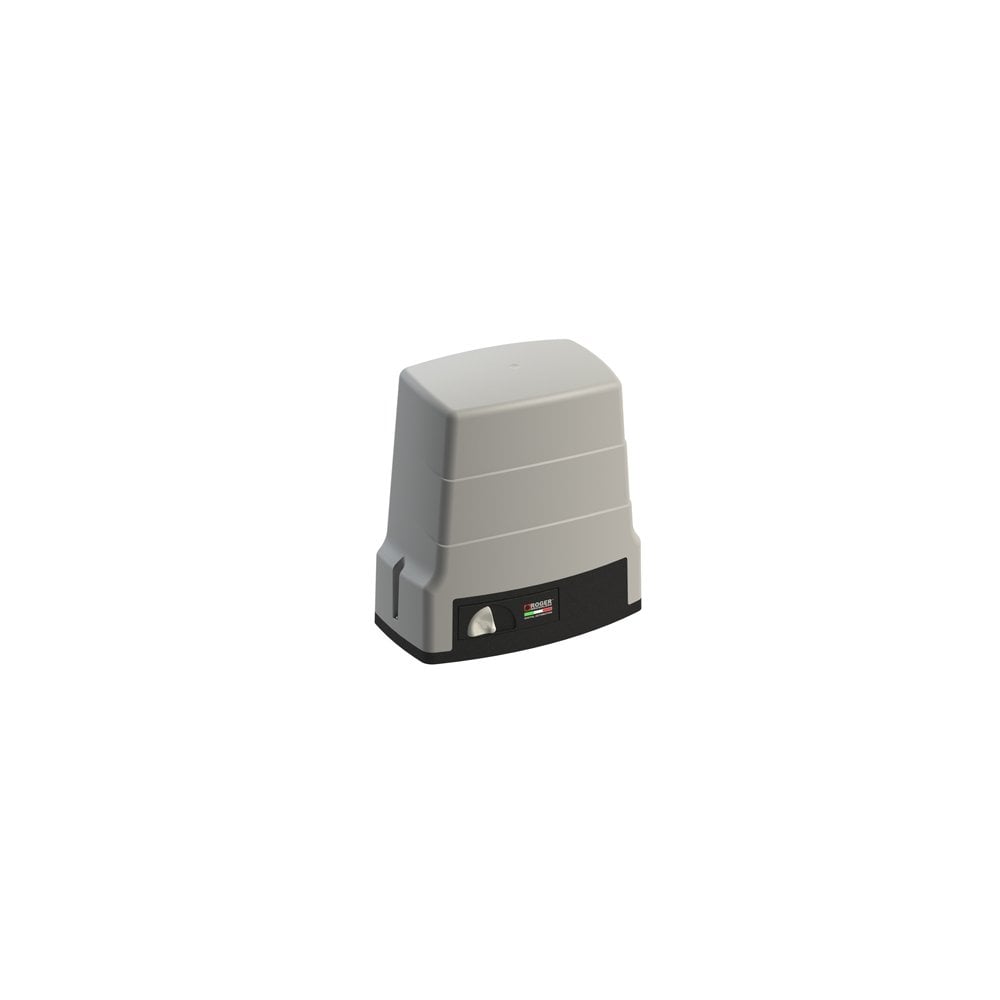

The BH30 Brushless Sliding Gate Motor is an electromechanical 24V BRUSHLESS motor designed for low voltage and super intensive use. This motor is equipped with a native encoder onboard and a built-in digital controller from the B70 series. It is ideal for sliding gates weighing up to 1000kg. The BH30 motor is available in high-speed and reversible editions, providing robust performance and reliability for both residential and commercial applications.
Key Features
24V Brushless motor
Super intensive use
Native encoder onboard
Mechanical or magnetic limit switch options
Irreversible or reversible models
High-speed motors available
Supports sliding gates up to 1000kg
Operator Options
BH30/603/HS - Up to 600kg - High Speed - Mechanical limit switch
BH30/604/HS - Up to 600kg - High Speed - Magnetic limit switch
BH30/803 - Up to 1000kg - Mechanical limit switch
BH30/804 - Up to 1000kg - Magnetic limit switch
BH30/804/R - Up to 800kg - Reversible - Magnetic limit switch
Specifications
Specification
BH30/603/HS
BH30/604/HS
BH30/803
BH30/804
BH30/804/R
Max Gate Weight (kg)
600
600
1000
1000
800
Power Line Supply
230V AC - 50Hz
Motor Power Supply
24V
Power Rating (W)
130
130
200
200
140
Frequency of Use
Intensive use
Thrust (N)
50 - 500
50 - 500
50 - 1000
50 - 1000
60 - 600
Operating Temperature (°C)
-20 to +55
Protection Level
IP43
IP44
IP43
IP43
IP43
Reductor Type
Irreversible
Irreversible
Irreversible
Irreversible
Reversible
Manoeuvre Speed (m/min)
26 (0.4)
26 (0.4)
12 (0.20)
12 (0.20)
18 (0.30)
Limit Switch
Mechanical
Magnetic
Mechanical
Magnetic
Magnetic
Onboard Control Unit
B70/1DC
Encoder
Digital native encoder + magnetic digital SENSORED, 4096 PPR
The BH30 Brushless Sliding Gate Motor is a versatile and reliable solution for operating sliding gates up to 1000kg. With a 24V low voltage design and super intensive use capability, it is perfect for both residential and commercial settings. The motor features a built-in digital controller from the B70 series and a native encoder for precise control. Available in high-speed and reversible models, the BH30 motor meets various application requirements. The reversible motors lock in the open and closed positions when powered, providing enhanced security and an emergency exit option during power outages.
Standard Accessories
KT214: Fixing plate with stay bolts and screws for H30 series
MC773: Kit mechanical limit switch for control units H70/103AC, H70/104AC, B70/1DC, B70/1DCHP
Other Accessories
GA550: Galvanised steel rack 22x22x1000 module 4
GA551: Galvanised steel rack 30x12x1000 module 4 with spacers and screws
GA554: Pocket of 6 spacers (2.5 cm) and screws
KT221: Raised fixing plate for H30 series (+3.5 cm)
R99/C/001: Signboard "Automatic Opening"
KT214/SC: Adapter plate with stay bolts and screws for H30 series
B71/BC: Batteries charger for Brushless digital controller B70/1DC
BT12V12: Battery 12V 1.2 Ah (1 pc)
BT12V45: Battery 12V 4.5 Ah (1 pc)
HT418: External box without batteries, for battery BT12V45 (12V DC 4.5 Ah)
KT214/SF: Adapter plate with stay bolts and screws for H30 series
GA557: Roger Technology nylon rack module 4 with 6 connectors L.1000
KT214/SN: Adapter plate with stay bolts and screws for H30 series
LT330: Chain drive kit for H30 - BH30 series
LT334: 1/2" X 5/16" 5 meter chain piece for LT330 with joint
R99/C/001AL: Aluminium version of the "Automatic Opening" signboard
B71/PBX24/BOX: Hybrid inverter, “Network Assisted” version, for 24V DC brushless digital controllers with a mains voltage of 230V AC
B71/PBX24/BOX/115: Hybrid inverter, “Network Assisted” version, for 24V DC brushless digital controllers with a mains voltage of 115V AC
B71/PBX/BOX: Hybrid inverter, “Full Solar” version, for brushless digital controllers
HT421: External box without batteries, for battery BT12V45 (4.5 Ah), BT12V70 (7 Ah), and BT12V120 (12 Ah), up to a maximum of 3 batteries
Additional Information
For more details on the BH30 Brushless Sliding Gate Motor or to place an order, please contact us. Our team is ready to assist you with any questions or support you may need.
