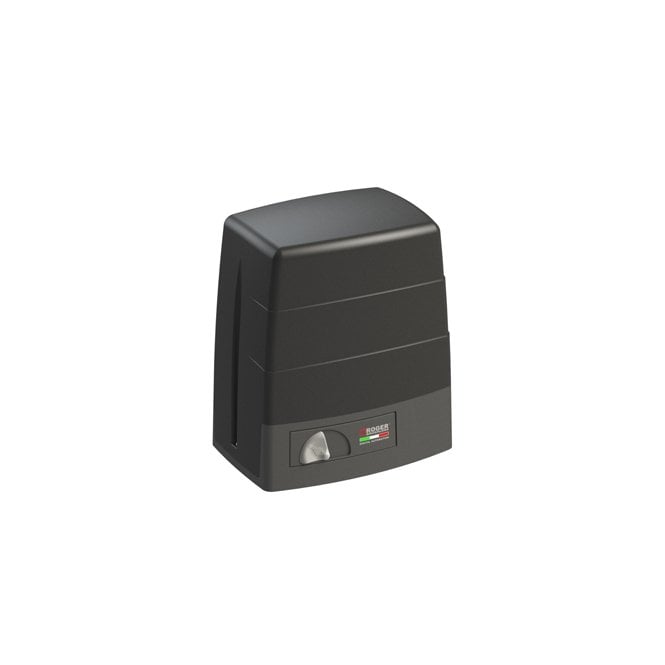

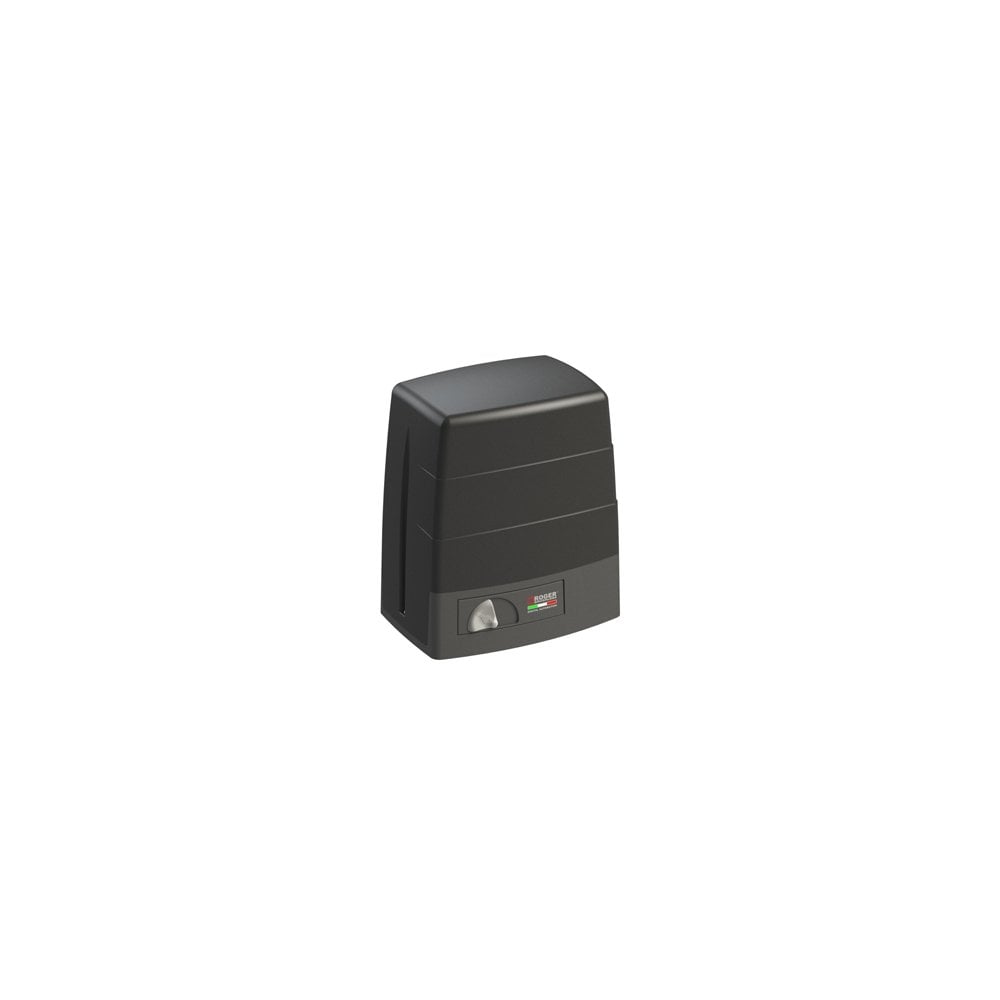

ROGER TECHNOLOGY BM30 Brushless Sliding Gate Motor | 24v | Up to 400kg | High Speed

Sliding Gate Operator

Code: BM30*

From £539.22 £449.35 Ex Vat Ex Vat Inc Vat Inc Vat
|
|
(%)

Item in Stock | Usually dispatched within 24 hours

Product Details
Delivery & Returns
Payment & Security
Downloads
Reviews

Product Overview

The BM30 Brushless Sliding Gate Motor is designed for super intensive use, ideal for sliding gates up to 400kg. This 24v high-speed electromechanical motor is irreversible and comes with a built-in digital controller from the B70 series. It is perfect for both residential and commercial applications, offering robust performance and reliability.

Motor Options

BM30/303/HS - 24v | Up to 400kg | High Speed | Mechanical limit switch
BM30/304/HS - 24v | Up to 400kg | High Speed | Magnetic limit switch

Key Features

High speed operation
Supports gates up to 400kg
Super intensive use
Available with mechanical or magnetic limit switches
Low voltage 24v motor

Specifications

Specification	Details
Max Gate Weight	400 kg
Power Supply	230V AC - 50Hz
Motor Power Supply	24V
Power Rating	125W
Thrust	50 - 350N
Protection Level	IP43
Limit Switch	Mechanical or magnetic (depending on chosen option)
Onboard Control Unit	B70/1DC
Manoeuvre Speed	26 m/min (0.44 m/s)
Product Dimensions (L x W x H)	250 x 165 x 290 mm
Product Weight	10.4 kg
Items Per Pallet	44

Accessories

Standard Accessories

KT223: Fixing plate with stay bolts and screws for M30 series.
MC773: Kit mechanical limit switch for control units H70/103AC, H70/104AC, B70/1DC, B70/1DCHP.

Other Accessories

GA550: Galvanised steel rack 22x22x1000 module 4.
GA551: Galvanised steel rack 30x12x1000 module 4 with spacers and screws.
GA554: Pocket of 6 spacers (2.5 cm) and screws.
KT220: Raised fixing plate for M30 series (+3 cm).
R99/C/001: Signboard "Automatic Opening".
GA557: Roger Technology nylon rack module 4 with 6 connectors L.1000.
R99/C/001AL: Signboard "Automatic Opening" Aluminium version.
B71/PBX24/BOX: Hybrid inverter, “Network Assisted” version, for powering the automation with a mains voltage of 230V AC.
B71/PBX24/BOX/115: Hybrid inverter, “Network Assisted” version, for powering the automation with a mains voltage of 115V AC.
B71/PBX/BOX: Hybrid inverter, “Full Solar” version, for brushless digital controllers.
