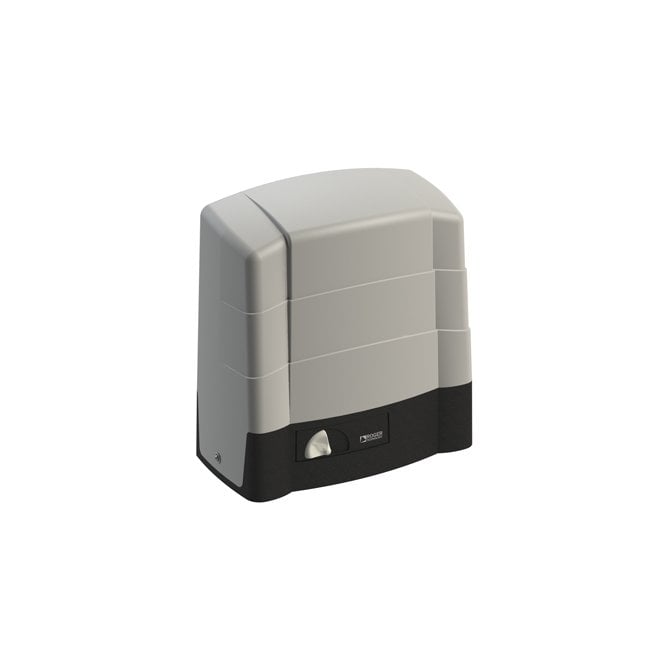

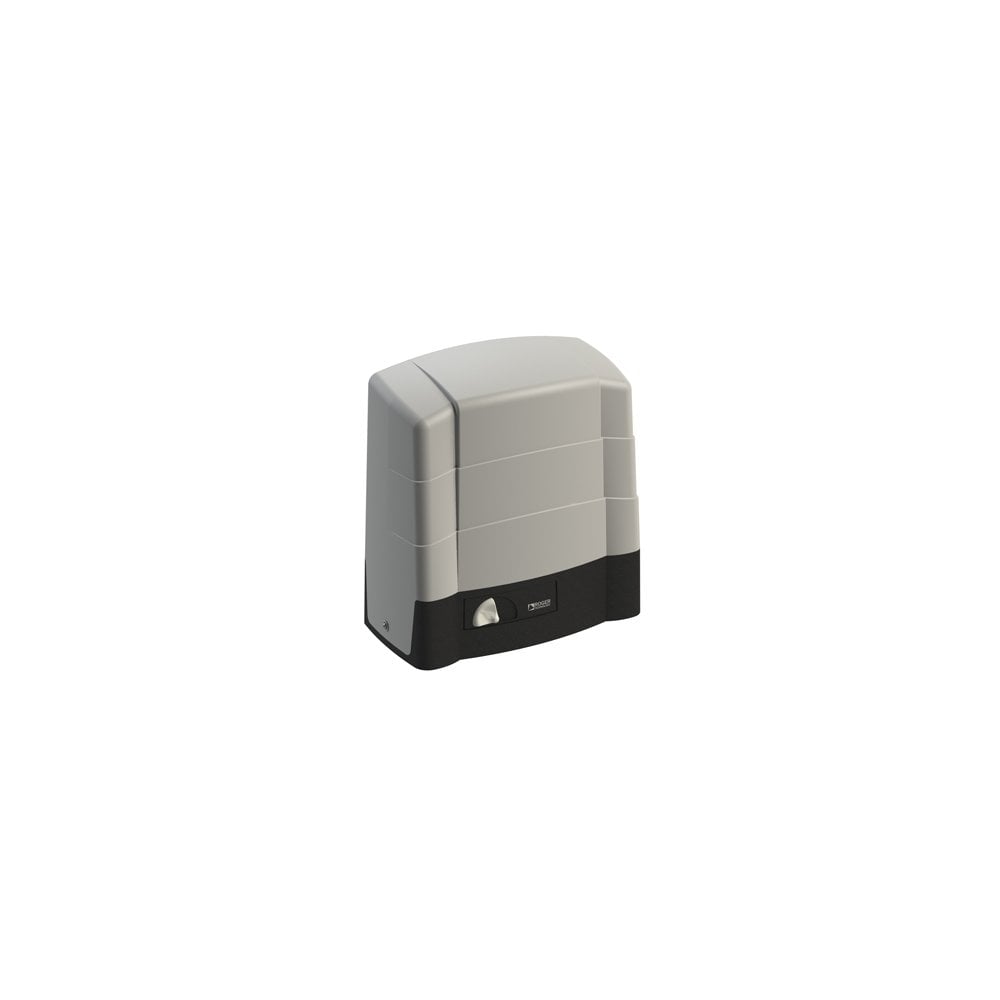

The G30 sliding gates motor is engineered for robust performance in demanding applications, supporting gates up to 2200 kg. Operating on 230V AC power, this motor is designed with built-in features including a control unit, optical encoder, and magnetic limit switch for precise and secure gate operation.
| G30/1804 | G30/2204 | |
|---|---|---|
| Max Gate Weight (kg) | 1800 | 2200 |
| Power Line Supply | 230V AC - 50Hz | 230V AC - 50Hz |
| Motor Power Supply | 230V AC | 230V AC |
| Power Rating (W) | 520 | 580 |
| Frequency of Use | 50% | 50% |
| Thrust (N) | 1200 | - |
| Reductor Type | Irreversible | Irreversible |
| Manoeuvre Speed (m/min) | 9.5 (0.16) | 9.5 (0.16) |
| Motor Thermal Protection (°C) | 150 | 150 |
| Incorporated Condenser (µF) | 18 | 18 |
| Limit Switch | Magnetic | Magnetic |
| Onboard Control Unit | H70/104AC | - |
| Encoder | Optical | Optical |
| Type Exit Gear | Z17/mod 4 | Z17/mod 4 |
| Dimensions (L x W x H in mm) | 346 x 180 x 362 | 346 x 180 x 362 |
Standard Accessories:
Other Accessories:
For more details or inquiries about the G30 sliding gates motor, contact us today. Our team is ready to assist with your specific requirements.
