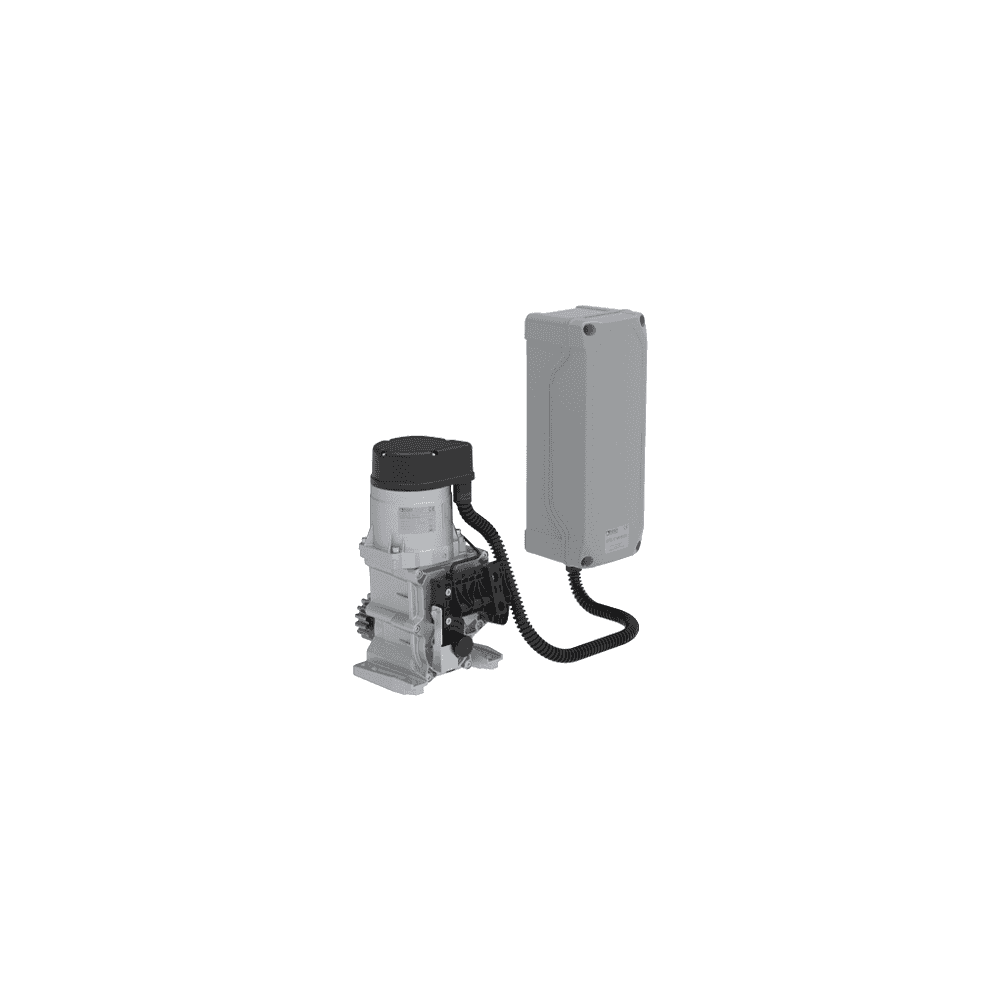

Electromechanical HIGH SPEED BRUSHLESS motor, low voltage, super intensive use, with SENSORED digital magnetic encoder at 4096 PPR, irreversible with digital controller in pre-wired plastic box series B70.
Motor options:
** Reversible Motors **
Roger Technology reversible motors lock in the open and closed position while the power is on but unlock as the power goes off.
This feature is useful if you need an emergency free exit in the event of a power cut.
Other brands' reversible motors are always unlocked and require an electric lock in the open and closed positions.
TW110/1000/HS | TW110/1200/R | TW110/1600/HS | TW110/2000 | |
---|---|---|---|---|
Max Gate Weight (kg) | 1000 | 1200 | 1000 | 2000 |
Power Line Supply | 230V AC - 50Hz | 230V AC - 50Hz | 230V AC - 50Hz | 230V AC - 50Hz |
Motor Power Supply | 36V | 36V | 36V | 36V |
Power Rating (W) | 240 | 240 | 240 | 240 |
Frequency of Use | Intensive use | Intensive use | Intensive use | Intensive use |
Thrust (N) | 270 | 300 | 270 | 570 |
Operating Temperature (°C) | -20 to +55 | -20 to +55 | -20 to +55 | -20 to +55 |
Protection Level | IP44 | IP44 | IP44 | IP44 |
Reductor Type | Irreversible | Reversible | Irreversible | Irreversible |
Manoeuvre Speed (m/min) | 25 (0.42) | 17 (0.28) | 25 (0.42) | 12 (0.16) |
Limit Switch | Without limit switches - optional | Without limit switches - optional | Without limit switches - optional | Without limit switches - optional |
Onboard Control Unit | B70/1THP | B70/1THP | B70/1THP | B70/1THP |
Encoder | Digital magnetic encoder SENSORED, 4096 PPR | Digital magnetic encoder SENSORED, 4096 PPR | Digital magnetic encoder SENSORED, 4096 PPR | Digital magnetic encoder SENSORED, 4096 PPR |
Batteries Recovery | Optional 2 external battery 12V 4,5AH | Optional 2 external battery 12V 4,5AH | Optional 2 external battery 12V 4,5AH | Optional 2 external battery 12V 4,5AH |
Type Exit Gear | Z20/mod 4 | Z17/mod 4 | Z20/mod 4 | Z17/mod 4 |
Operating Cycles per Day | 150000 | 150000 | 150000 | 150000 |
Maximum Dimension Product (L x W x H in mm) | 185 x 160 x 333 | 185 x 160 x 333 | 185 x 160 x 333 | 185 x 160 x 333 |
