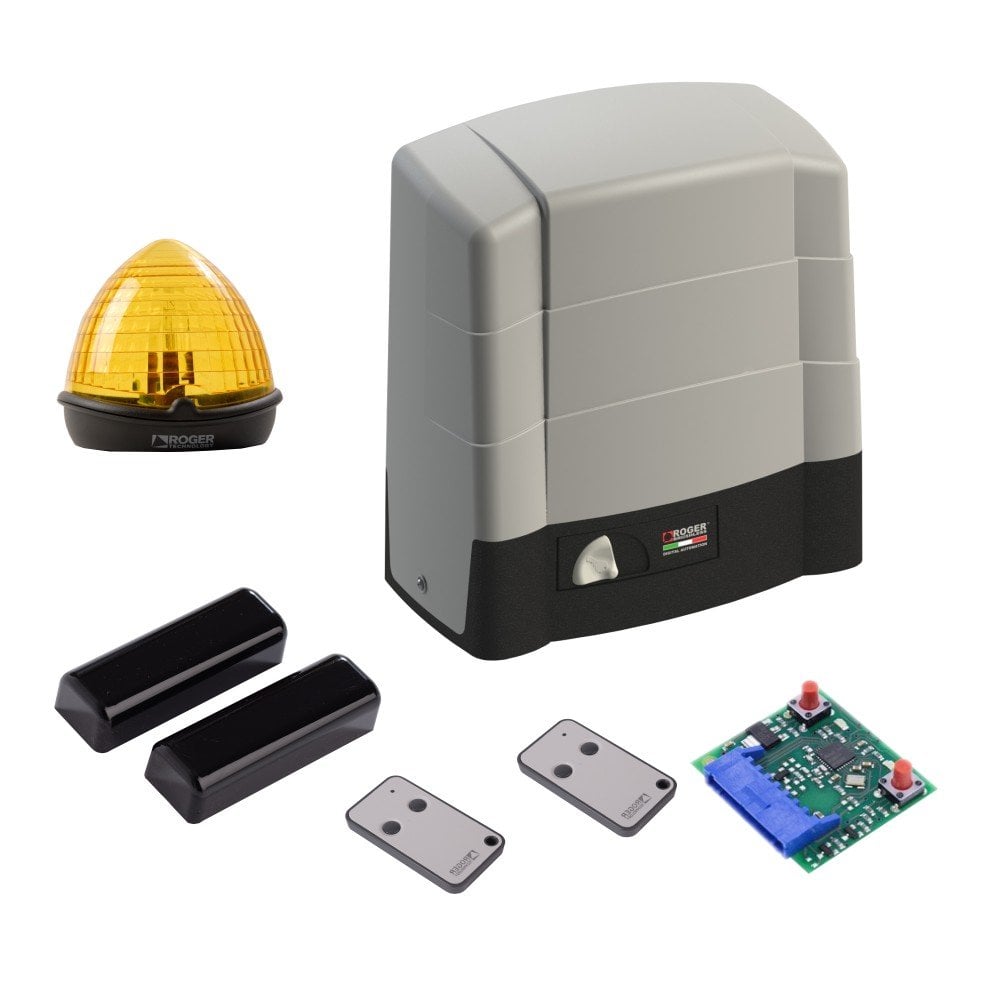

The BG30 Brushless Sliding Gates Kit features an electromechanical BRUSHLESS motor with a 36V power supply, designed for low voltage and super intensive use. This kit includes a built-in digital controller from the B70 series and a magnetic limit switch. It is ideal for sliding gates with weights ranging from 1000kg to 2200kg. Available in high-speed and reversible editions, this kit offers robust performance and reliability for both residential and commercial applications.
The BG30 Brushless Sliding Gates Kit is engineered for robust performance, featuring a 36V BRUSHLESS motor that ensures super intensive use. This motor is ideal for sliding gates with weights from 1000kg up to 2200kg, depending on the chosen option. The kit includes high-speed and reversible options, making it versatile for various applications. The built-in digital controller and magnetic limit switch provide precise control and enhance the reliability of the system. Reversible motors offer additional safety, unlocking during power cuts to allow for emergency exits.
Specification | BG30/1004/HS | BG30/1404/R | BG30/1504/HS | BG30/1604 | BG30/1804/HS | BG30/2204 |
---|---|---|---|---|---|---|
Max gate weight (kg) | 1000 | 1400 | 1500 | 1600 | 1800 | 2200 |
Power line supply | 230V AC - 50Hz | |||||
Motor power supply | 36V | |||||
Power rating (W) | 590 | 540 | 650 | 390 | 650 | 470 |
Frequency of use | Intensive use | |||||
Thrust (N) | 50 - 800 | 50 - 600 | 50 - 1000 | 50 - 1200 | 50 - 1250 | 50 - 1700 |
Operating temperature (°C) | -20 to +55 | |||||
Protection level | IP44 | |||||
Reductor Type | Irreversible | |||||
Manoeuvre speed (m/min) | 20 (0.33) | 17 (0.28) | 25 (0.42) | 12 (0.20) | 18 (0.30) | 12 (0.16) |
Limit switch | Magnetic | |||||
Onboard control unit | B70/1DCHP | |||||
Encoder | Digital native encoder + magnetic digital SENSORED, 4096 PPR | |||||
Batteries recovery | Optional 2 external battery 12V 4.5AH | |||||
Type exit gear | Z17/mod 4 | |||||
Operating cycles per day (opening/closing - 24 hours no stop) | 800 | 800 | 800 | 1000 | 800 | 1000 |
Maximum dimension product (L x W x H in mm) | 350 x 220 x 380 |
For more details on the BG30 Brushless Sliding Gates Kit or to place an order, please contact us. Our team is ready to assist you with any questions or support you may need.
