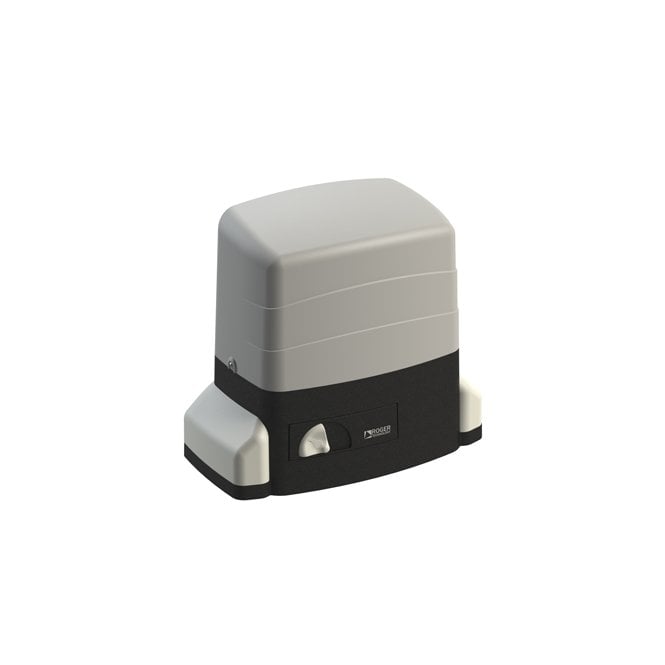

ROGER TECHNOLOGY R30 Sliding Gate Motor | 230V | Up to 1200 kg

Sliding Gate Operator
Code: R30*
  • From £588.73 Inc Vat
Item in Stock   |   Usually dispatched within 24 hours
Loading...

Product Overview

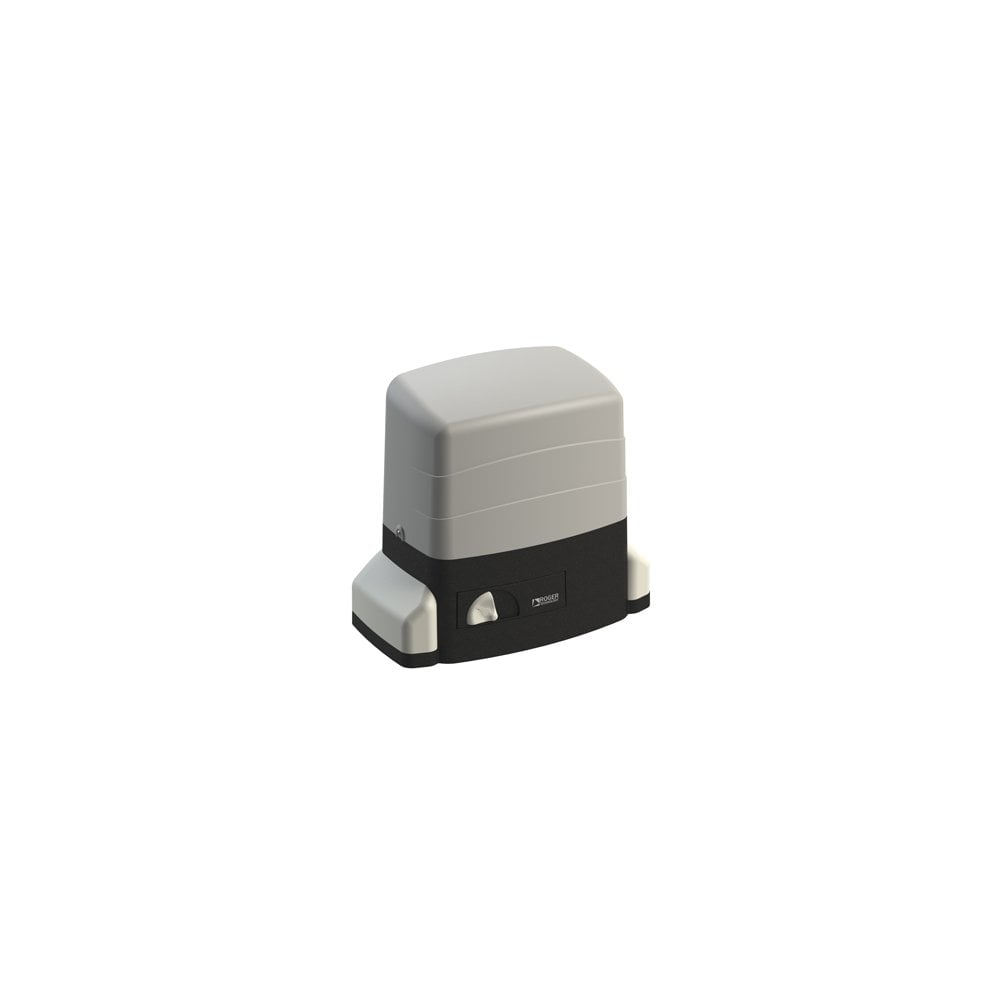

The R30 Sliding Gate Motor is an electromechanical motor designed for sliding gates, providing reliable and efficient operation for gates weighing up to 1200 kg. It operates on a 230V AC power supply and comes with a built-in H70 control unit and optical encoder. The motor is available in various configurations to meet different gate weight requirements and limit switch preferences.

Available Options

  • R30/803: Up to 800 kg with Mechanical limit switch
  • R30/804: Up to 800 kg with Magnetic limit switch
  • R30/1204: Up to 1200 kg with Magnetic limit switch

Key Features

  • 230V AC power supply
  • Irreversible motor
  • Suitable for sliding gates up to 1200 kg
  • Built-in H70 control unit
  • Optical encoder for precise movement
  • Available with mechanical or magnetic limit switches

Specifications

SpecificationR30/803R30/804R30/1204
Max Gate Weight (kg)8008001200
Power Line Supply230V AC - 50Hz230V AC - 50Hz230V AC - 50Hz
Motor Power Supply230V AC230V AC230V AC
Power Rating (W)350350420
Frequency of Use50%50%50%
Thrust (N)500500800
Operating Temperature (°C)-20 to +55-20 to +55-20 to +55
Protection LevelIP44IP44IP44
Reductor TypeIrreversibleIrreversibleIrreversible
Manoeuvre Speed (m/min)9.5 (0.16)9.5 (0.16)9.5 (0.16)
Motor Thermal Protection (°C)150150150
Incorporated Condenser (µF)151518
Limit SwitchMechanicalMagneticMagnetic
Onboard Control UnitH70/104ACH70/104ACH70/104AC
EncoderOpticalOpticalOptical
Type Exit GearZ17/mod 4Z17/mod 4Z17/mod 4
Dimensions (L x W x H in mm)325 x 162 x 295325 x 162 x 294325 x 162 x 294

Standard Accessories

  • MC773: Kit mechanical limit switch for control unit H70/103AC, H70/104AC, B70/1DC, B70/1DCHP
  • KT210: Fixing plate with stay bolts and screws for R30 series

Other Accessories

  • GA550: Galvanised steel rack 22x22x1000 module 4
  • GA551: Galvanised steel rack 30x12x1000 module 4 with spacers and screws
  • GA554: Pocket of 6 spacers (2.5 cm) and screws
  • KT211: Pair of side angles bars complete with screws
  • KT212: Raised fixing plate for R30 series (+3.5 cm)
  • R99/C/001: Signboard "Automatic Opening"
  • LT328: Pinion Z17 mod. 4 with increased thickness H.38 for series R30 - G30 - E30 (except BG30/1504/HS)
  • GA557: Roger Technology nylon rack module 4 with 6 connectors L.1000
  • R99/C/001AL: Signboard "Automatic Opening" Aluminium version
