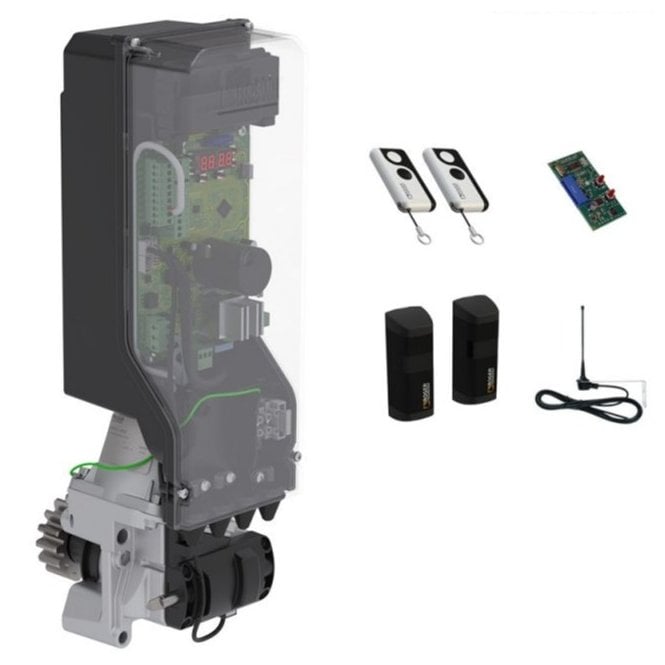

The TW90 Sliding Gates Kit features a 24V electromechanical brushless motor designed for super intensive use. This irreversible motor is ideal for sliding gates up to 800kg and comes equipped with a sensored digital magnetic encoder at 4096 PPR. The kit includes a built-in digital controller from the B70 series, ensuring precise control and reliable performance.
Max gate weight | 800 kg |
Power line supply | 230V AC - 50Hz |
Motor power supply | 24V |
Power rating | 180W |
Frequency of use | Intensive use |
Thrust | 385N |
Operating temperature | -20°C to +55°C |
Protection level | IP44 |
Reductor Type | Irreversible |
Manoeuvre speed | 12.3 m/min (0.2 m/s) |
Limit switch | Without limit switches - optional |
Onboard control unit | B70/1T |
Encoder | Digital magnetic encoder SENSORED, 4096 PPR |
Batteries recovery | Optional 2 internal battery 12V 1.2AH |
Type exit gear | Z15/mod 4 |
Operating cycles per day (opening/closing - 24 hours no stop) | 150000 |
Maximum dimension product in mm (L x W x H) | 132 x 138.5 x 470 |
