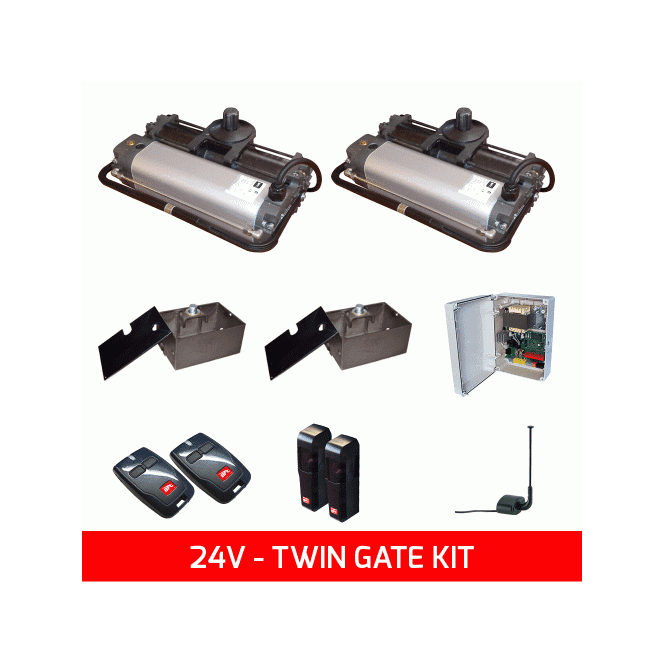

The BFT SUB BT Twin Kit is a robust and compact solution designed for very intensive use in residential, industrial, and multi-residence applications. This 24V hydraulic operator kit can automate swing gate leaves up to 2.5 meters wide and weighing up to 800kg. It includes everything needed for efficient and reliable gate automation.
| Specification | Details |
|---|---|
| Power Supply | 24V |
| Gate Leaf Length | 2m (self-locking), 2.5m (electric lock required) |
| Max Leaf Weight | 800kg |
| Control Panel | Thalia |
| Cycle Time | 9° per sec |
| Impact Reaction | D-Track |
| Protection Rating | IP67 |
| Temperature Range | -20°C to 60°C |
| Frequency of Use | Very intensive |
Install the BFT SUB BT Twin Kit by following the provided manual. Ensure the gate leaves do not exceed the maximum width and weight specifications. Pair the Mitto transmitters with the Thalia P control panel for seamless operation. Use the Compacta 180° photocells to enhance safety and prevent accidents. The radio antenna ensures reliable signal transmission for remote operation.
The components of the BFT SUB BT Twin Kit are compact and designed for easy installation and integration with existing gate structures.
Regularly check the hydraulic operators and control panel for optimal performance. Ensure the photocells are clean and unobstructed. Replace the batteries in the Mitto transmitters as needed. The IP67 protection rating ensures the components are protected against dust and water, but periodic maintenance is recommended to extend the lifespan of the kit.
For more information or to place an order, please contact us at sales@example.com or call us at 01234 567890.
