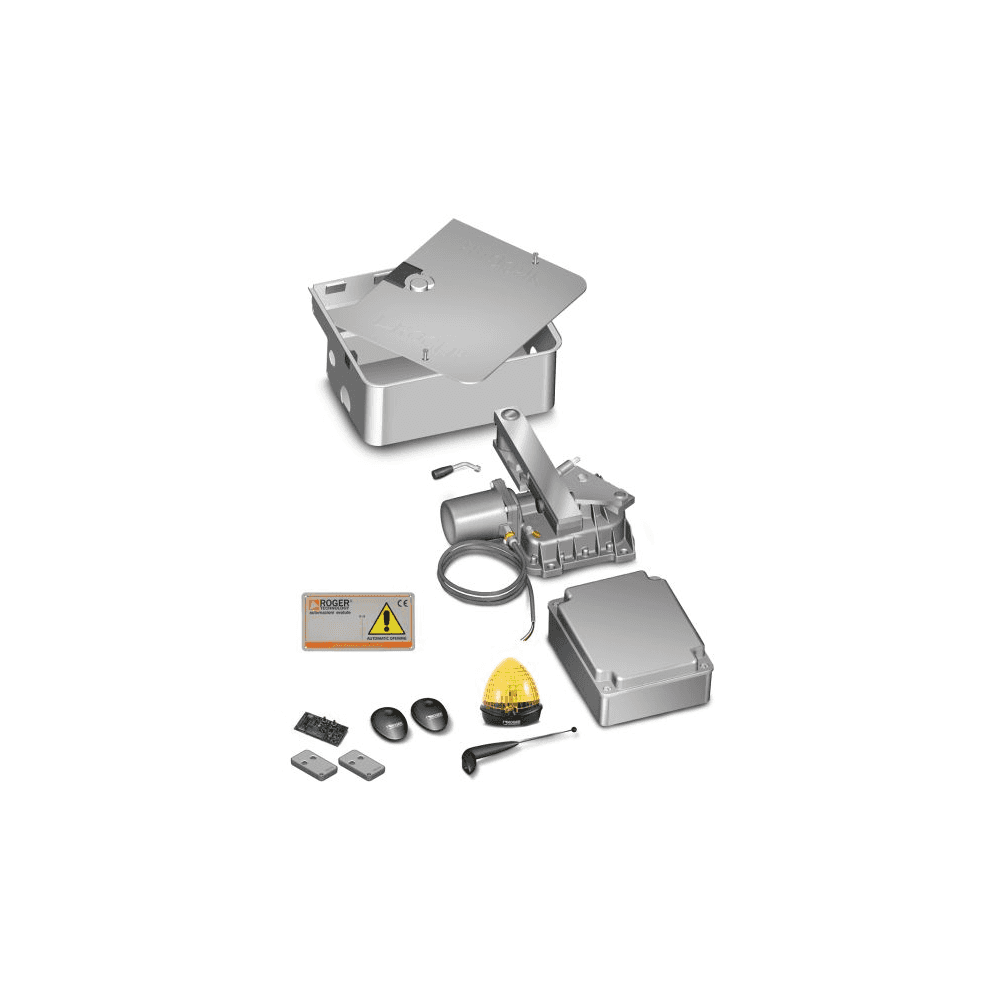

The BR21 Underground Brushless Single Kit is an electromechanical underground motor designed for super intensive use. Operating on 36V, this irreversible motor features a native encoder onboard and is suitable for swing gates with leaves up to 3m, 4.5m, or 5m depending on the chosen option. The kit includes a foundation box (optional), a release system with standard lever, and an electronics kit.
Specification | BR21/351 | BR21/361 | BR21/351/HS | BR21/361/HS | BR21/362 |
---|---|---|---|---|---|
Power line supply | 230V AC - 50Hz | 230V AC - 50Hz | 230V AC - 50Hz | 230V AC - 50Hz | 230V AC - 50Hz |
Motor power supply | 24V - 36V | 24V - 36V | 24V - 36V | 24V - 36V | 24V - 36V |
Power rating | 200W | 200W | 200W | 200W | 200W |
Frequency of use | Intensive | Intensive | Intensive | Intensive | Intensive |
Torque | 50 - 300 N m | 50 - 300 N m | 50 - 200 N m | 50 - 200 N m | 50 - 300 N m |
Operating temperature | -20 to +55°C | -20 to +55°C | -20 to +55°C | -20 to +55°C | -20 to +55°C |
Protection level | IP67 | IP67 | IP67 | IP67 | IP67 |
Reductor Type | Irreversible | Irreversible | Irreversible | Irreversible | Irreversible |
Manoeuvre speed | 1.2 RPM | 1.2 RPM | 2 RPM | 2 RPM | 1.2 RPM |
Opening time | 19-29 sec | 19-29 sec | 10-25 sec | 10-25 sec | 19-29 sec |
Limit switch | Mechanical stoppers | Mechanical stoppers | Mechanical stoppers | Mechanical stoppers | Mechanical stoppers |
Recommended digital controllers | EDGE1/BOX | EDGE1/BOX | EDGE1/BOX | EDGE1/BOX | EDGE1/BOX |
Encoder | SENSORLESS 48 PPR | SENSORLESS 48 PPR | SENSORLESS 48 PPR | SENSORLESS 48 PPR | SENSORLESS 48 PPR |
Maximum opening | 105° (optional 125° - 360°) | 105° (optional 125° - 360°) | 105° (optional 125° - 360°) | 105° (optional 125° - 360°) | 105° (optional 125° - 360°) |
Power supply cable length | 2m | 10m | 2m | 10m | 10m |
Bearing on main shaft | Standard | Double bearings | Standard | Double bearings | Double bearings |
Operating cycles per day (opening/closing - 24 hours no stop) | 1300 | 1300 | 1300 | 1300 | 1300 |
Maximum dimension product (L x W x H) | 345 x 224 x 144 mm | 345 x 224 x 144 mm | 345 x 224 x 144 mm | 345 x 224 x 144 mm | 345 x 224 x 144 mm |
